[GB] Plaid // Ortholinear 12 x 4

Marketplace Group buys and pre-orders
1

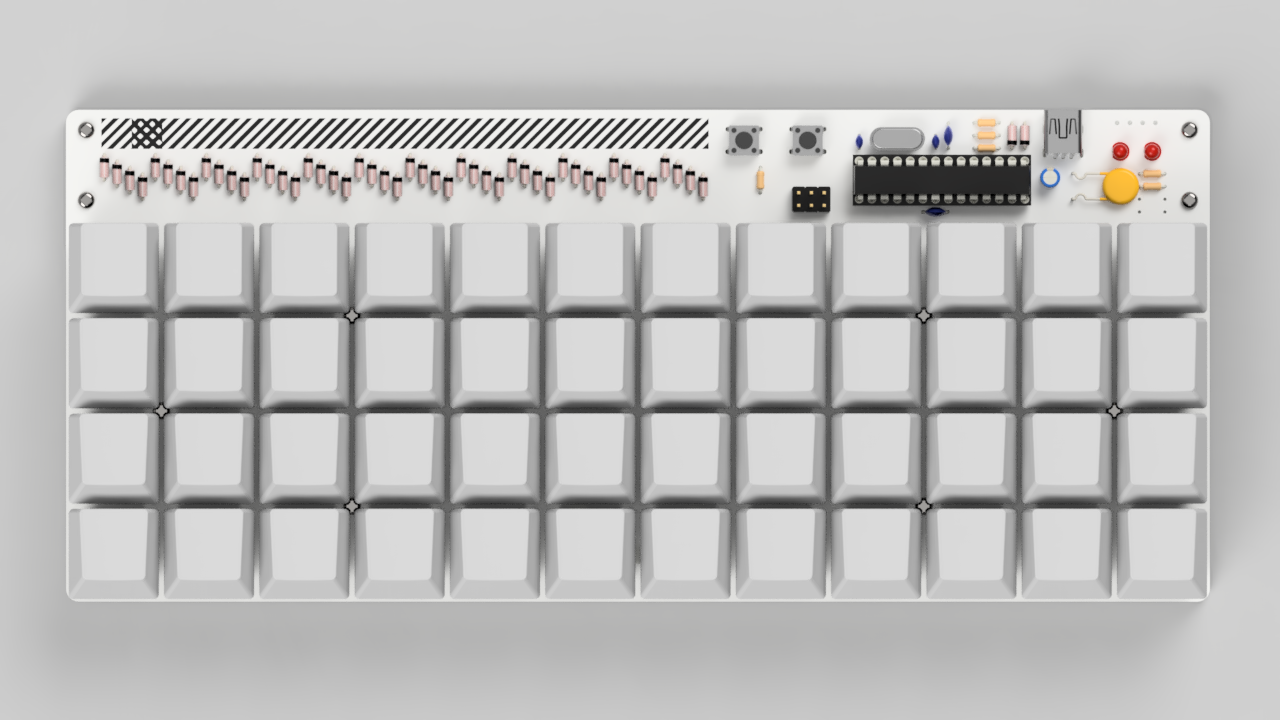

glUh7h7
glUh7h71280×720 371 KB

Through-hole components ONLY!
NEED SOLDERING
12×4 ortholinear layout
Grid layout and MIT layout
ONLY for PCB mount Cherry MX compatible switches (5pin)
Does not include switch plate.
MCU is ATMEGA328p
QMK Firmware with V-USB
USB DFU bootloader
update firmware via USB and avrdude, no need programmer
Open Source Hardware

Pricing
Full kit – £45
Main and bottom PCB
All electric components for build
include MCU programmed bootloader
Screws and spacer
Rubber feet
Acrylic guard plate (transparent, like u/InsertWittyTextHere build)
(NOT include) USB cable, Switches, keycaps, key stabilizer

PCB – £27.50 (include paypal fee)
Main and bottom PC

Mid April shipping date

https://groupbuys.mechboards.co.uk/shop/plaid-throughhole-12x4/

3 Likes
2

Wow I really like the exposed component look of this board; it looks great!

Random Q; is there LED support?

3

Yea it’s really cool :slight_smile: There isn’t LED support on this PCB, no.

4

What USB connector does it use?
