You are correct. You need a usb-mini or c daughterboard. The universal daughterboard doesn’t fit nice in the Leopold stock case.

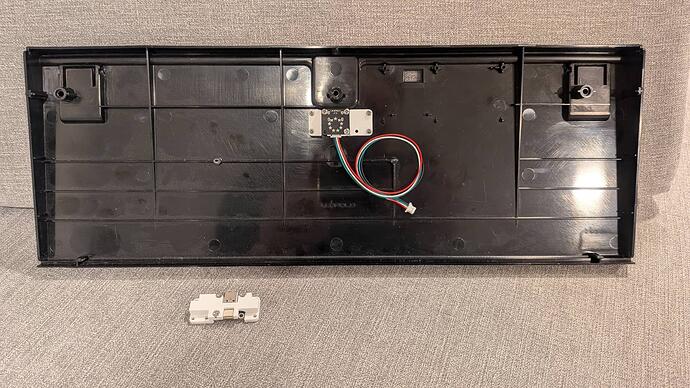

The designer of the nt pcb, evyd13, released a usb-c daughter board for much of the Leopold line Fc980c/m fc750r fc900r. This one has the oem connector and the qwiic connector.
(Sorry for the double post trying to support the designer, she is running a GB here if someone is looking for one) 2022 anykeys.eu Daughterboard GB
3 Likes
Would this daughterboard offer programability ? Like just add it and voila ?
No.
Programmability requires custom pcb or a controller. The usb daughterboard is just a passthrough.
1 Like
Would anyone have an extra nt-980 PCB and FR4 plate I could buy from them for a Heavy 9 build?
If anyone is interested, I have a 2 spare nt-980 PCBs.
just pcb

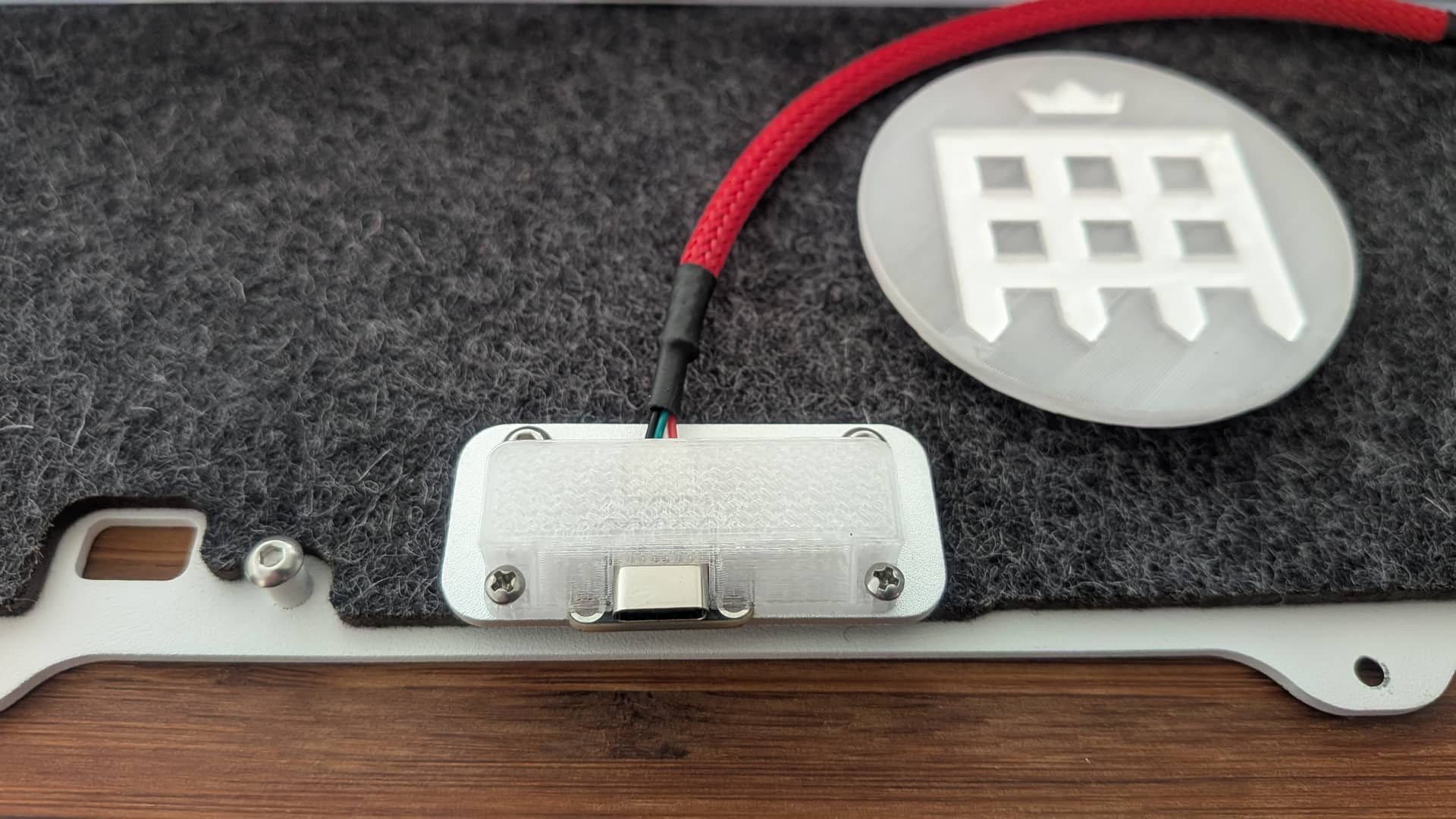

I finally built up my NT-980. I had been waiting for GMK Rainy Day so I could match it with the Norbauer Aperture finish. Used the usb-c db, and the little mounting support brackets from Dave
.
This build with Kiwis in the purple POM plate (and plate foam, recommended for the extra structure) this has been an absolute dream for the last couple weeks.
7 Likes
That’s a nice pairing!
1 Like
Where did you get the plate foam?
I got the both the POM plate and the plate foam from Jake at P3DStore. I just uploaded the same plate file for both
Hey there reaching out to you to purchase these pcbs!
The PCB is open source now. it’s discussed (at length!) in this thread Leopold FC980m Replacement PCB (works w/VIA)
This is the link directly to the github, if you choose to order some (generally the pcbway moq is qty 5) I’m sure there will be plenty of other eager folks here willing to snag one.
The coffee mug puts this over the top.
2 Likes
Hello Dave! Thanks for all these contributions; this thread is a great resource. You don’t happen to have any extra pieces (PCB/DB/plate) from your mini GB, do you? If so, let me know.
Otherwise, I’m posting here in the thread to see if anybody would like to have some PCBs/daughterboards/plates ordered. Just got a 980M and would love to have it modded with alternate layouts instead of the standard one.
Cheers.
3 Likes
I would be down for at least 1 set of pcb/db/plate if you’re looking to do a small run dude.
1 Like
Hello! Sorry to say no extras left.
Did sell my last 6 usb-c daughterboards on Conical discord at $8 ea to cover some R&D over the last couple weeks. They did sold in about 1 day. Just incase anyone makes a GB there is some potential interest in that for my Topre friends. Those daughterboards are relatively expensive for example ordering 5 assembled is like $30 but 15 assembled is like $40.
Edit: Yesterday I did a quick mock up of the price these yesterday it was like $150 and today drop down to $85… The mcu atmega32u4 AU drop from $20 to $6 that is the cheapest for at least a year. I will make a small correction to the full solder gerber & production files tomorrow to include the JST connector for underglow and USB connection for those who don’t want to solder that part themselves.
Edit 2: Full solder Git Hub files have been updated to version 1.3 to include the jst/qwiic connectors for assembly production files. JLCPCB Gerber view in the order process shows up wacky but it is properly manufactured.
3 Likes
All good, Dave! Someone just reached out offering to kindly offer spare parts they found, so I may be all covered now.
Thanks for the thorough response!
1 Like
Hey Dave, wondering if you have any extras or know of anyone who does? Appreciate any and all assistance tyty!
