Does DZ60RGB ANSI V2 have ESD Protection?

steelblock · October 31, 2020, 6:22am

I read on reddit that several people who had DZ60RGB have gotten their keyboards damaged just by touching the aluminum case due to ESD. I am not sure whether they had V1 or V2. Does anyone know whether DZ60RGB ANSI V2 has ESD protection?

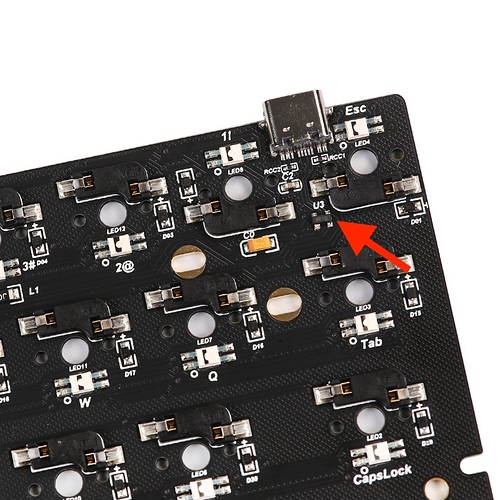

I think the marked part in the image is related to ESD. But not sure.

Rico · October 31, 2020, 7:17am

Yes, this chip looks to be ESD protection relates.

dwarflemur · October 31, 2020, 9:19am

Looks like this nexperia part

Rico · October 31, 2020, 9:01pm

Yes, this one looks to be commonly used in keyboard PCBs.
It does protect only D+ and D- datalines though, no VBUS ESD protection.

dwarflemur · October 31, 2020, 9:43pm

it has a zener on VBUS

Rico · October 31, 2020, 9:45pm

Oh, yes my bad
