[GB] Geometry70-70% Layout VIA Support Top Mount+Gasket Mount Keyboard

Geometry 70%

70% Layout VIA Support Top Mount+Gasket Mount Mechanical Keyboard

Discord | Instagram | TikTok

Index

  1. Intro
  2. Design
  3. Features
  4. Color options
  5. Specifications
  6. Inside the box
  7. Reviews
  8. GB Information
  9. Vendors

1. Intro

Hello everyone!
Have you ever been awed by the beauty of geometric aesthetics? Simple geometric shapes, when combined, can create countless patterns and designs. Today, we’re excited to introduce a keyboard inspired by geometric forms. Without further ado, let’s dive into the details of this unique keyboard!

2. Design

The designer used lines to outline geometric shapes, including single-sided (double-sided) trapezoids, parallelograms, triangles, polygons and other common shapes to fit the design theme.

Badge

On the right side of the kit is a badge with a height difference to highlight the sense of hierarchy, so that the front of the entire keyboard will not be too “flat”. In order to interpret the minimalist theme of geometry, no fonts or content are designed.

Interior

The interior of the kit uses a sandblasted brass cover to cover the battery and small board, making the interior more refreshing and simple. Several geometric figures are lightly outlined on the cover to fit the theme, making it more spacious and visually impactful.

Note: It is normal for unpolished brass to have surface oxidation after several months of use and is not covered by after-sales service.

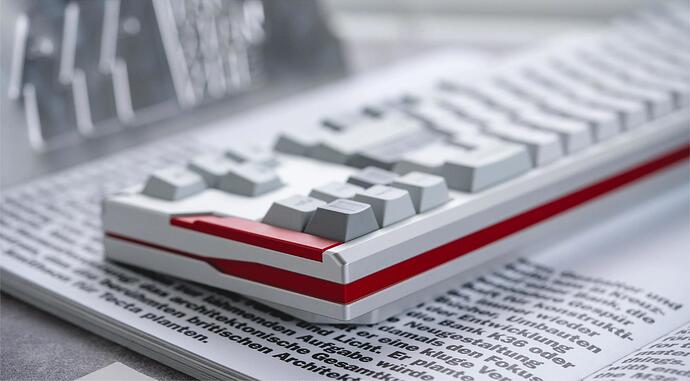

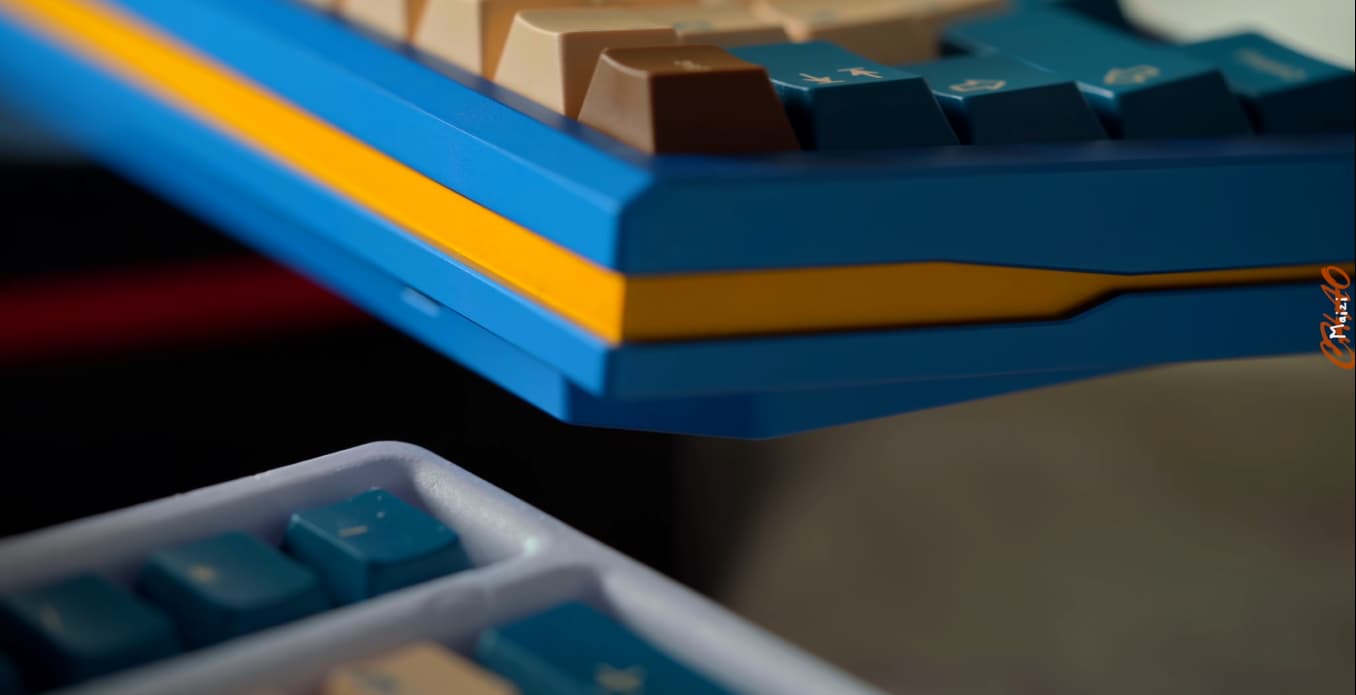

Side

Because of the existence of the middle frame, after assembly, part of the middle frame will be exposed on the side, so the middle frame is designed to be the same color as the badge, so that the overall color of the kit will have a better sense of hierarchy, and the contrasting colors on the side will also enhance the appearance of the kit.

Weight

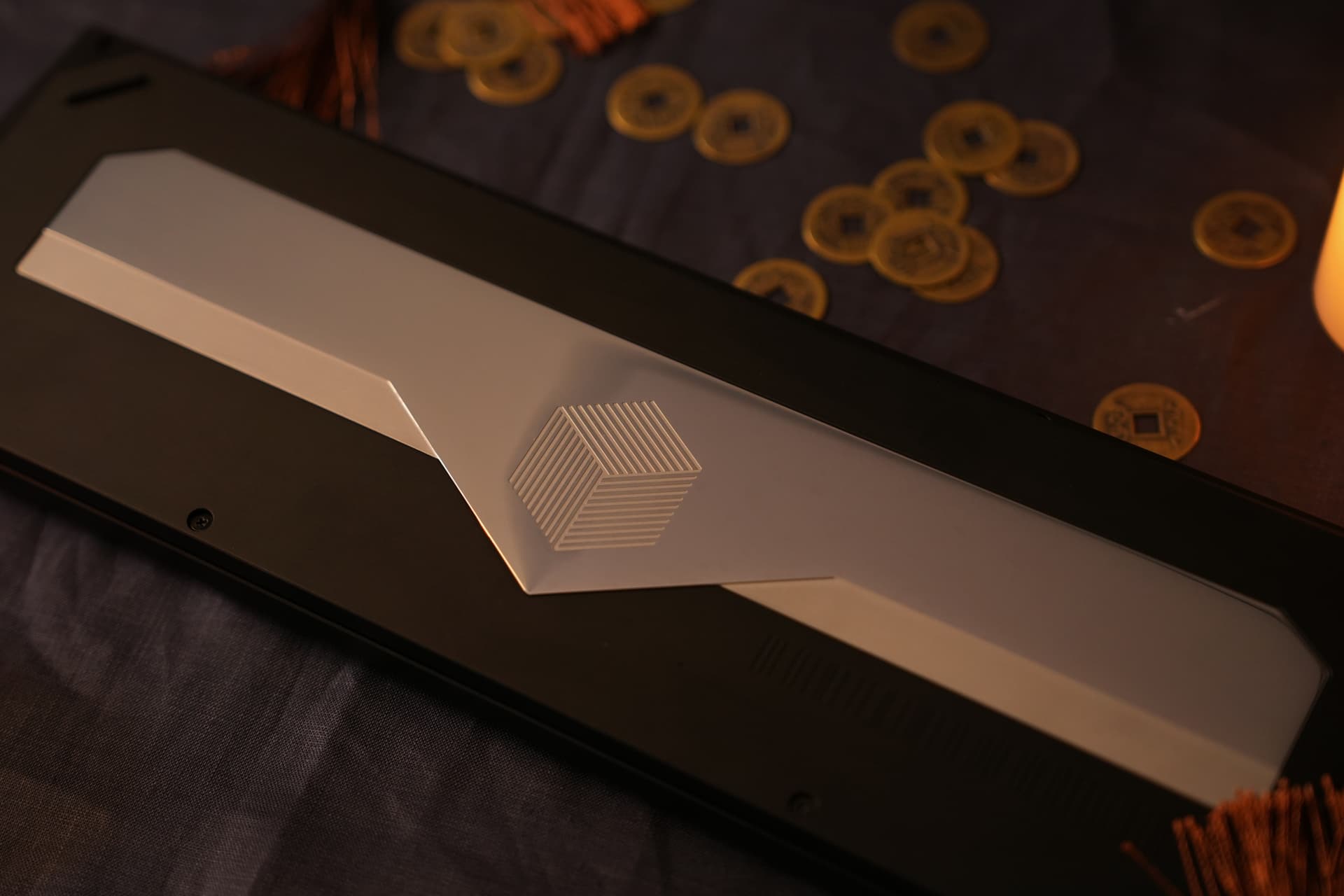

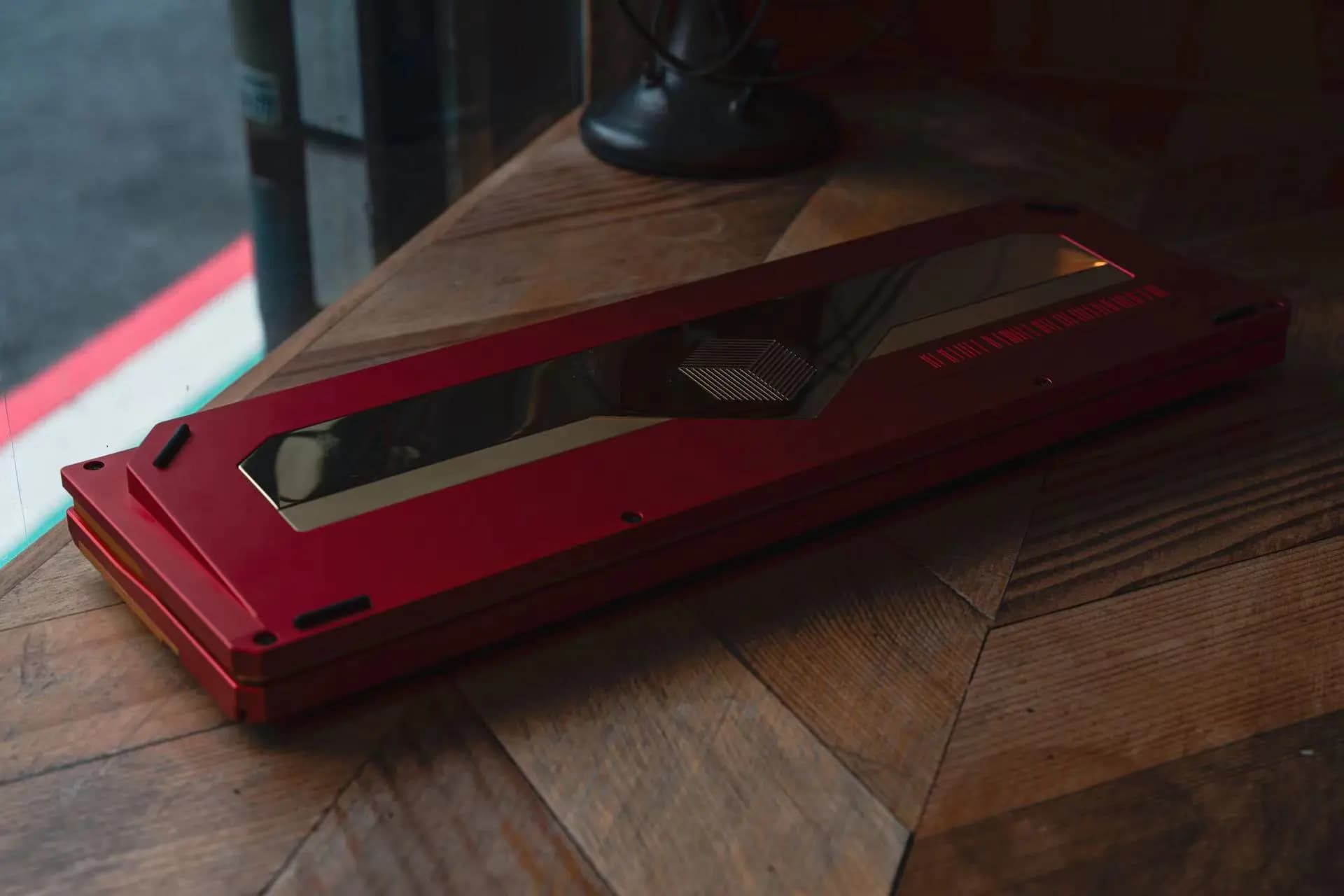

The bottom of the Geometry 70% uses a piece of PVD stainless steel, with a more complex geometric figure in the middle. This figure is the theme logo of the kit, indicating geometry. The protruding inverted triangle below is matched with the mirror trapezoids on both sides, and the trapezoids are sunken to increase the level.

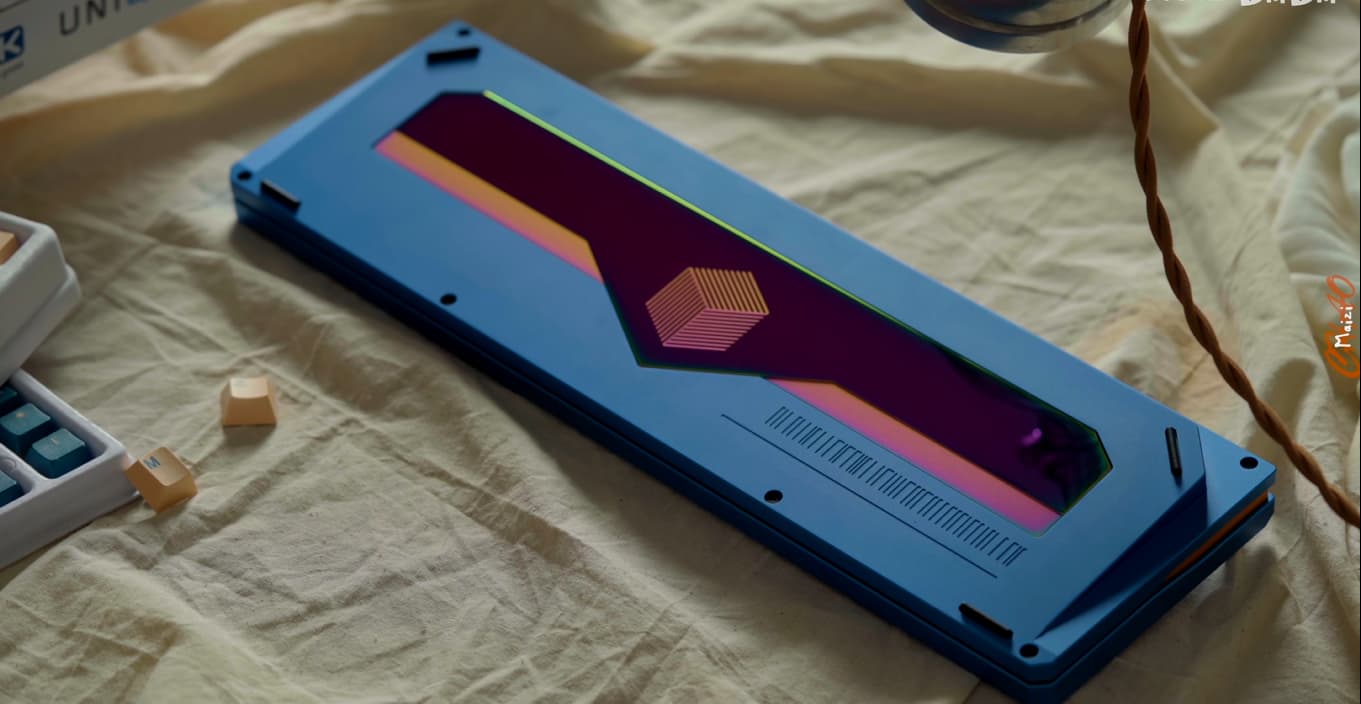

There is a row of barcodes on the lower right side of the weight. If you use Baidu to scan, you can find the Geometry 70% keyboard on Baidu. This is also a more interesting design point, and it also makes the back not so monotonous.

3. Features

2 Mounts Support

Geometry 70% can support WK or WKL layout. You can choose the layout you like when you purchase.

WK/WKL Layout Support

The Geometry 70% supports dual structure switching between Top mount and Gasket mount. It is the best choice for those who want to experience multiple structures.

Multi-layer Structure

The multi-layer structure design greatly improves the typing experience of Geometry 70%. It meets the needs of ordinary users and avid typists.

2 Types Of Connections

Support Bluetooth and Type-C wired 2 connection modes. The dual-mode connection meets users’ different usage requirements, and there are 3 devices can be freely switched in Bluetooth mode.

Long-Lasting Battery Life

The Geometry 70% offers a 4000mAh battery, delivering up to 1-2 weeks of usage. Long battery life ensures uninterrupted work and entertainment, allowing you to stay productive and stay connected wirelessly for longer, without the need for frequent charging. What’s more, it allows you to charge and use at the same time in wired mode.

VIA Support

VIA is a tool that enables keyboard configuration. With the VIA configurator, you can map keys to the physical layout of your keyboard.

4. Color Options

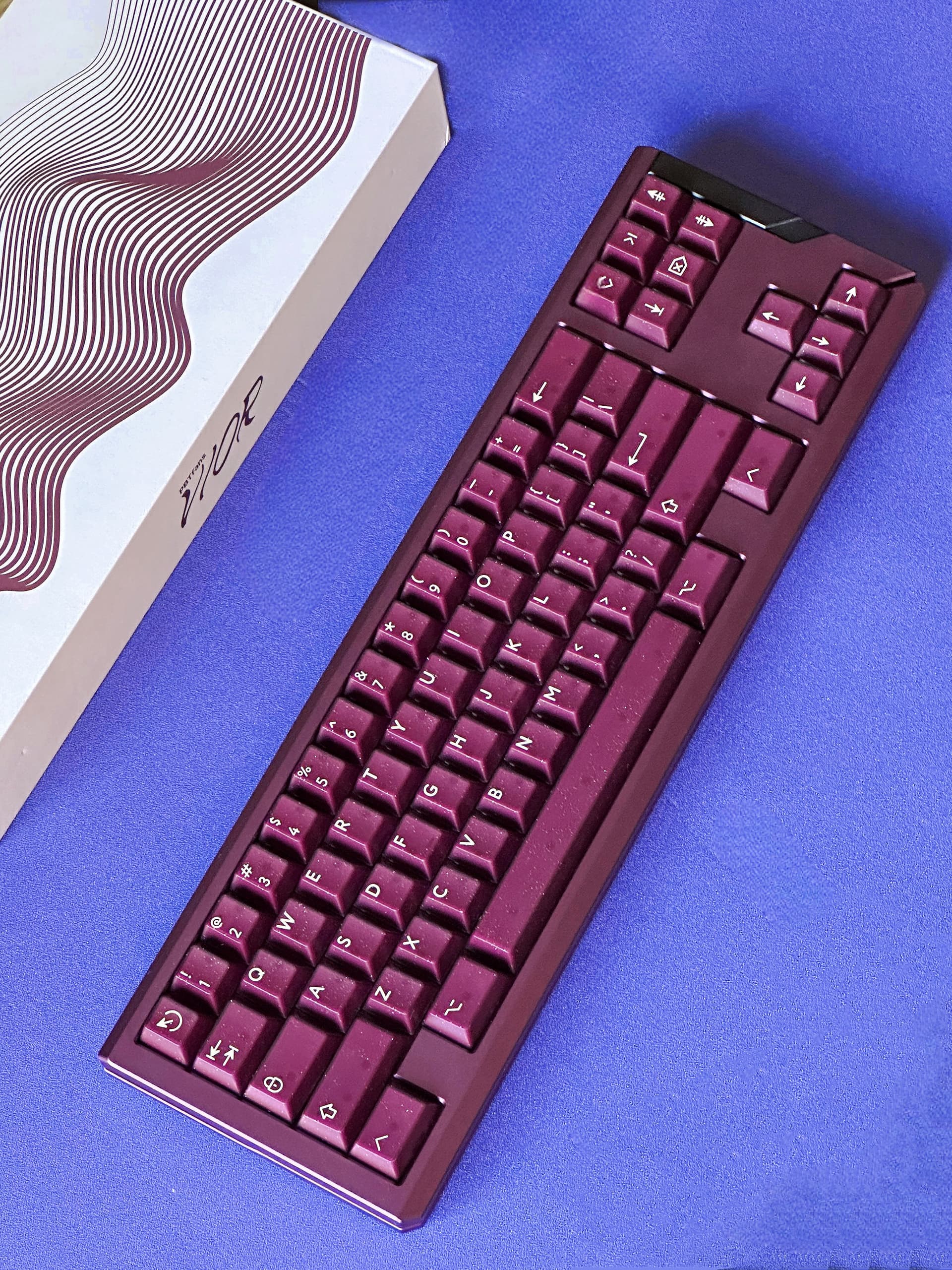

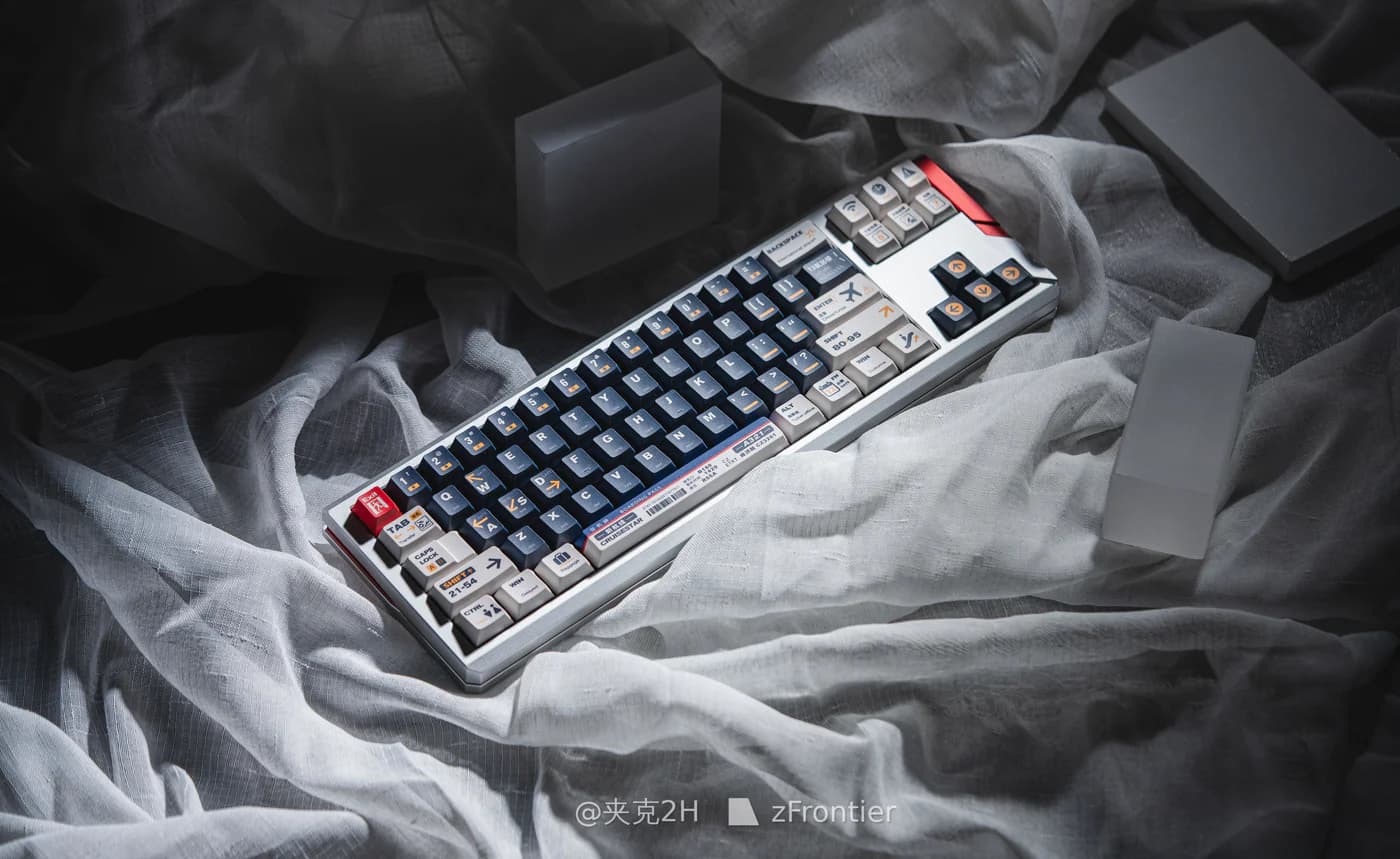

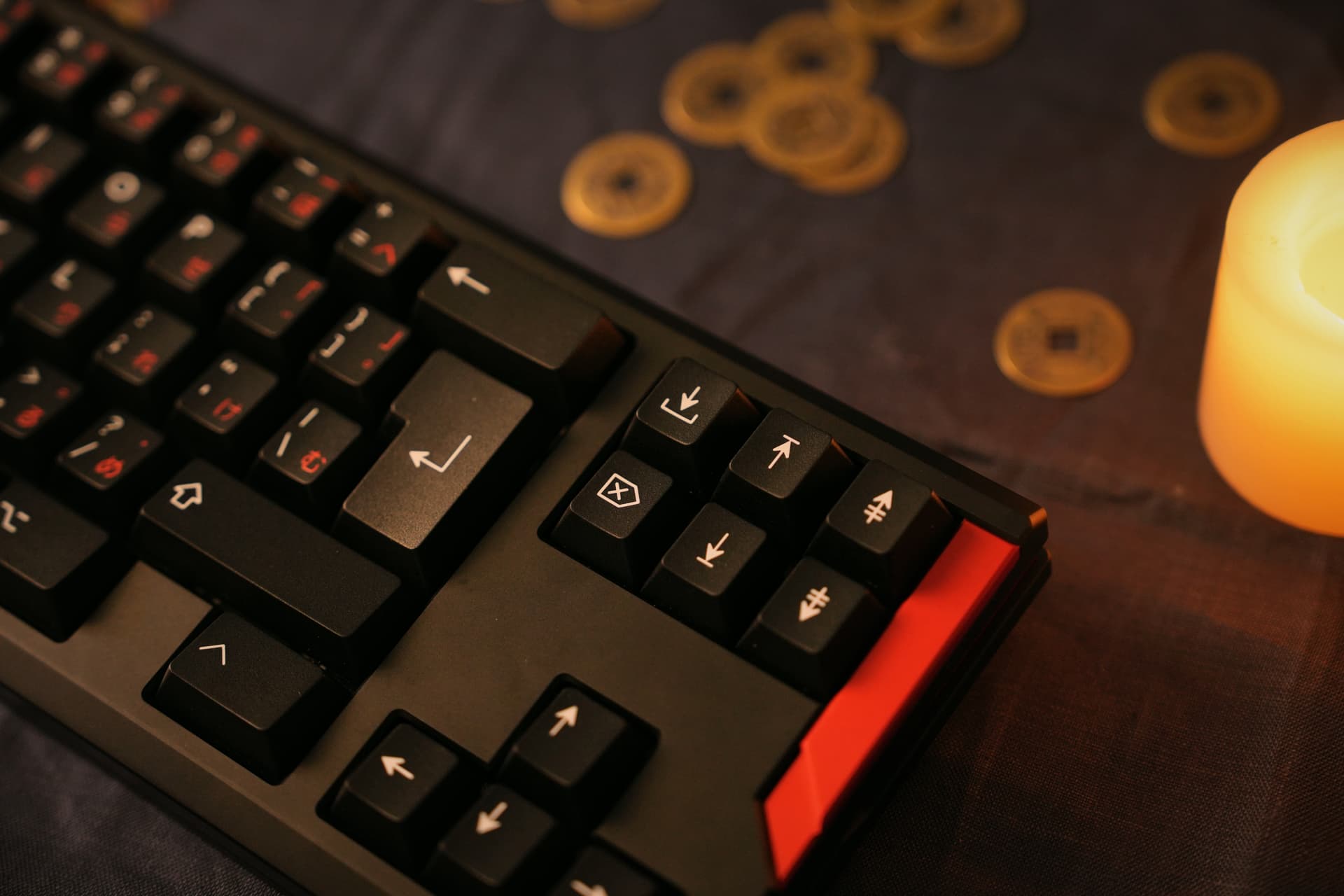

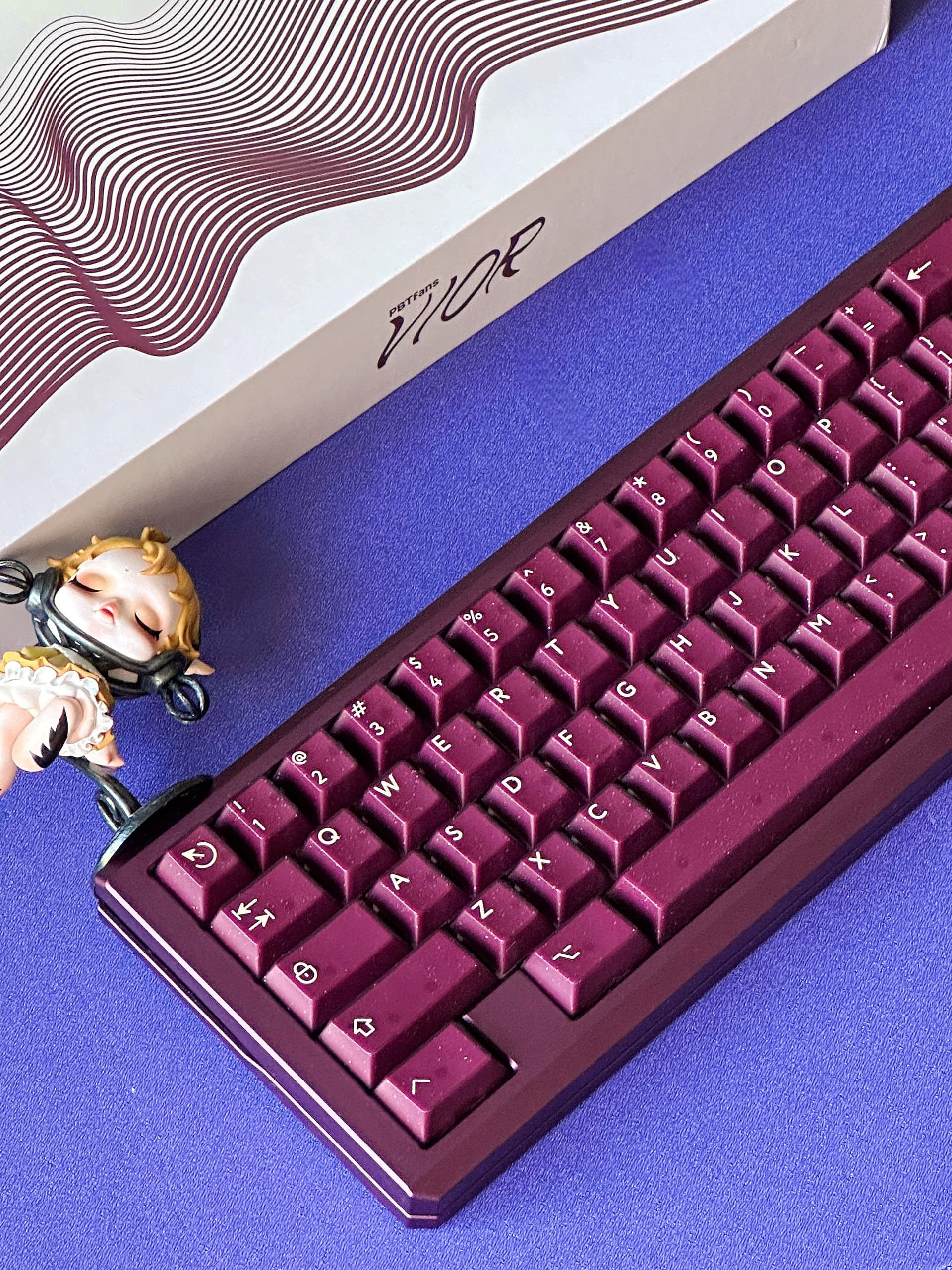

Photos IRL

5. Specifications

Layout: 70%
Mount:Gasket Mount & Top Mount
Case Material: 6063 CNC Aluminum
Surfacing: Anodized, PVD
Acoustic:0.5mm IXPE pad, 3.5mm Poron pad, 1mm bottom pad, 1mm switch bottom pad
Weight: Stainless steel PVD+ Frosted geometric weight (4 colors optional: Black, Silver, Gold, Chroma)
Net Weight:1.5kg
Weight With Package: 2.45kg
Size: 37311532mm
Typing Angle: 7°
Compatible System: Support Windows & Mac
Battery: 4000mAh (2000mAh*2)
Rolling rate: 1000Hz (Wired), 125Hz (Bluetooth)
Front Height: 20.5mm
Back Height: 32mm
Caps indicator light: Yes
Latency: 3ms(Wired), 8ms(Bluetooth)
Support VIA (Do not support QMK)
Add on: Alu plate with flex-cuts (Including one Top mount plate and one Gasket mount plate)
PVD Weight(Black/Silver/Gold/Chroma)

Plate
Top mount support plate
Gasket Mount support plate
1.5 mm thickness
Without flex-cuts
PC material
Support ANSI &ISO layout
Support stepped caps lock
Support 7U, 6.25U spacebar

PCB
Hotswappable
1.2 mm thickness
With Flex-cuts
Only PCB mounted stabs compatible
Support ANSI & ISO layout
Support WK/WKL
Support VIA
Does not support QMK
Support stepped caps lock
Support 7U, 6.25U spacebar

6. Inside the box

Aluminum top case * 1
Aluminum bottom case * 1
Aluminum dual structure conversion middle frame * 1
Aluminum badge * 1
Brass sandblasted battery cover * 1
Stainless steel PVD + frosted geometric weight * 1
Black PC plate (Gasket) * 1
Black PC plate (Top) * 1
Type-C daughterboard + silicone cable * 1
Bluetooth dual-mode hot-swappable PCB * 1
0.5mm IXPE pad * 1
3.5mm Poron pad * 1
1mm bottom pad * 1
1mm switch bottom pad * 1
Screw bag * 1
Foot pad * 4
Mek geometric packaging box * 1

7. Reviews (TBD)

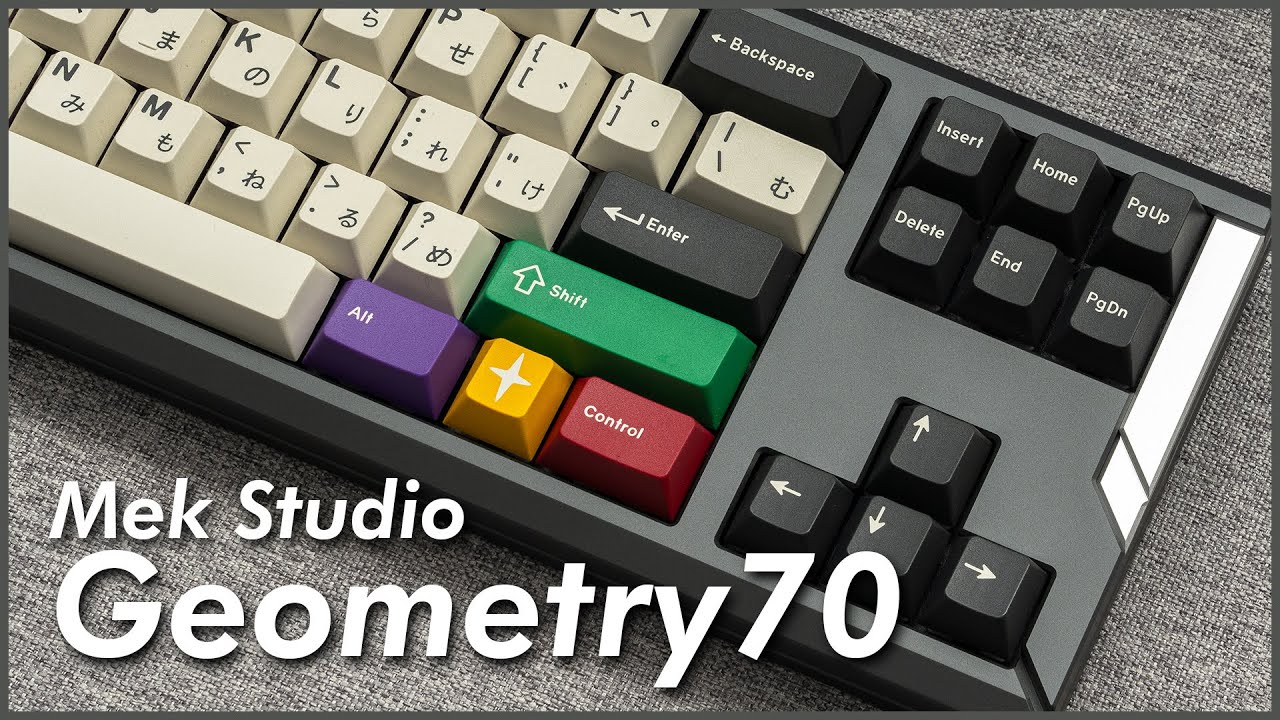

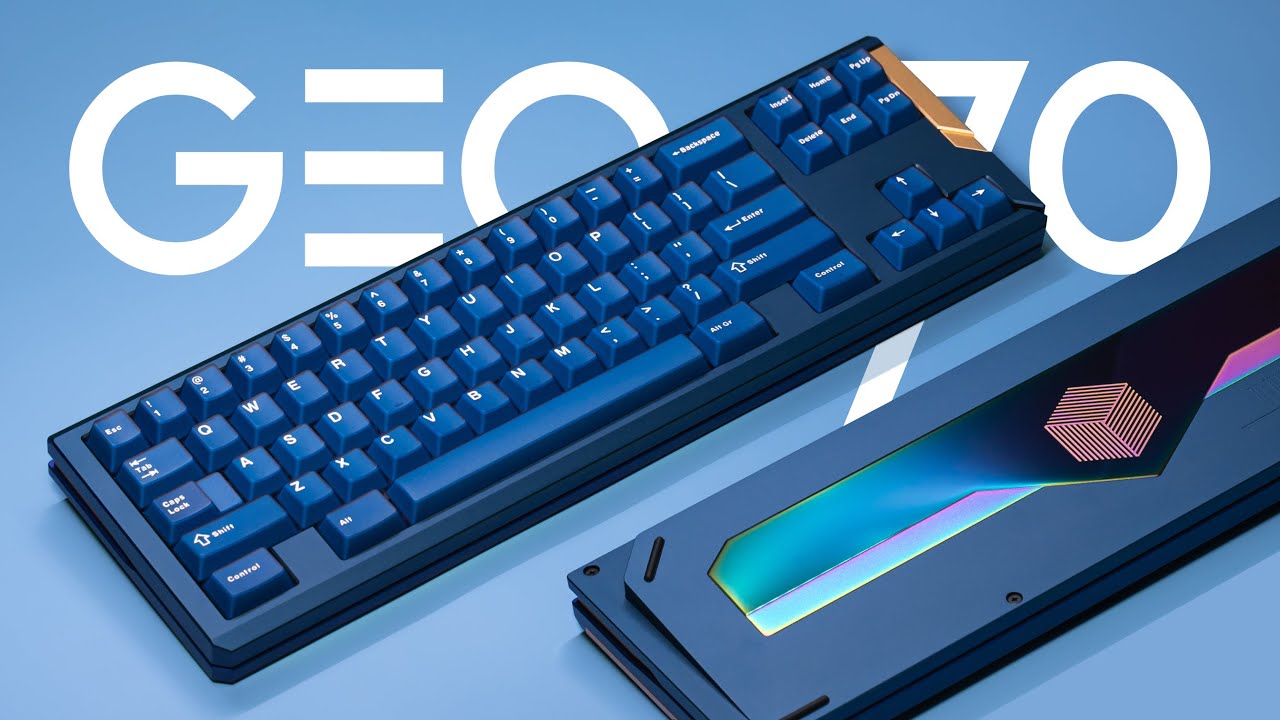

TAZAKEY

Samuel Tan

SeungupKBD

Wabi sabi

Merkeebs

Akeynote
MCZ Studio
Keebtunes

8. GB Information

Time: Sep 4th - Sep 30th, 2024, GMT+8
GB Price: 239USD
Estimated Shipping Time: December 2024

9. Vendors

Worldwide: Velocifire
US: Keebs For All
CA: Ashkeebs
EU: Keygem
UK: Mechkeyboards
SG: iLumkb
PH: Kurdtbro Switches
JP: Basekeys
ID: Mechaland
AU: Switchkeys

Welcome to join our Discord and follow our Instagram,TikTok for more discussion, latest update and questions! :)









2 Likes

Lovely, unique design! I’d personally like to see an option to either choose the accent color or buy an additional one. For instance, I think both the black and red cases would look great with a shiny black PVD accent on the top and mid piece. Also, the blue might look nice with silver. Just my two cents.

I realize the weights can be purchased separately, but I’m asking about the accents.

Hi there, thank you so much for your feedback, if the customers purchase from our website, we are able to change the original back weight color for them!

1 Like

Oh, that’s nice. So I would purchase the board and then send an email asking for a different color mid piece and top accent?

Hi there, yes, please confirm the color you want first then purchase the board.
