GOBsmacked by Gorgeous Old Boards

Keyboards of yesteryear have a certain je ne sais quois. Perhaps it’s the oddball layouts, before everything settled into (mostly) neat camps based on use cases and keycap availability. Perhaps it’s the chonky old switches (when “low-profile” meant only an inch high, rather than two). Perhaps it’s the big aircraft carrier bezels and unapologetic expanses of case surrounding the keys, an appropriate frame for a work of art. Is it the stepped caps and lit/locking lock keys? I think it’s all of this.

Back in the day, caps and boards were birds of a feather that were built together – bespoke keys existed for OS and architecture-specific functionality (DEC “GOLD” key, anyone?). The layouts were beautiful, varied, and more often than not broke out of the rectangular box, especially true for terminal keyboards and esoteric computers of the 70s and 80s.

You see the modern keyboard community flirting with the design language and ideas of yore, from the curved Model OLED to @keyboardbelle’s Cadette case to AKB’s beautiful behemoth board OGR (endgame, amirite?). This shows the viability and timeless allure of these designs. Let’s go full retro, dig out our parents’ boards (and grandparents’ boards!), and fill this thread full of the OG inspirations!

4 Likes

I will start with a beauty as old as I am:

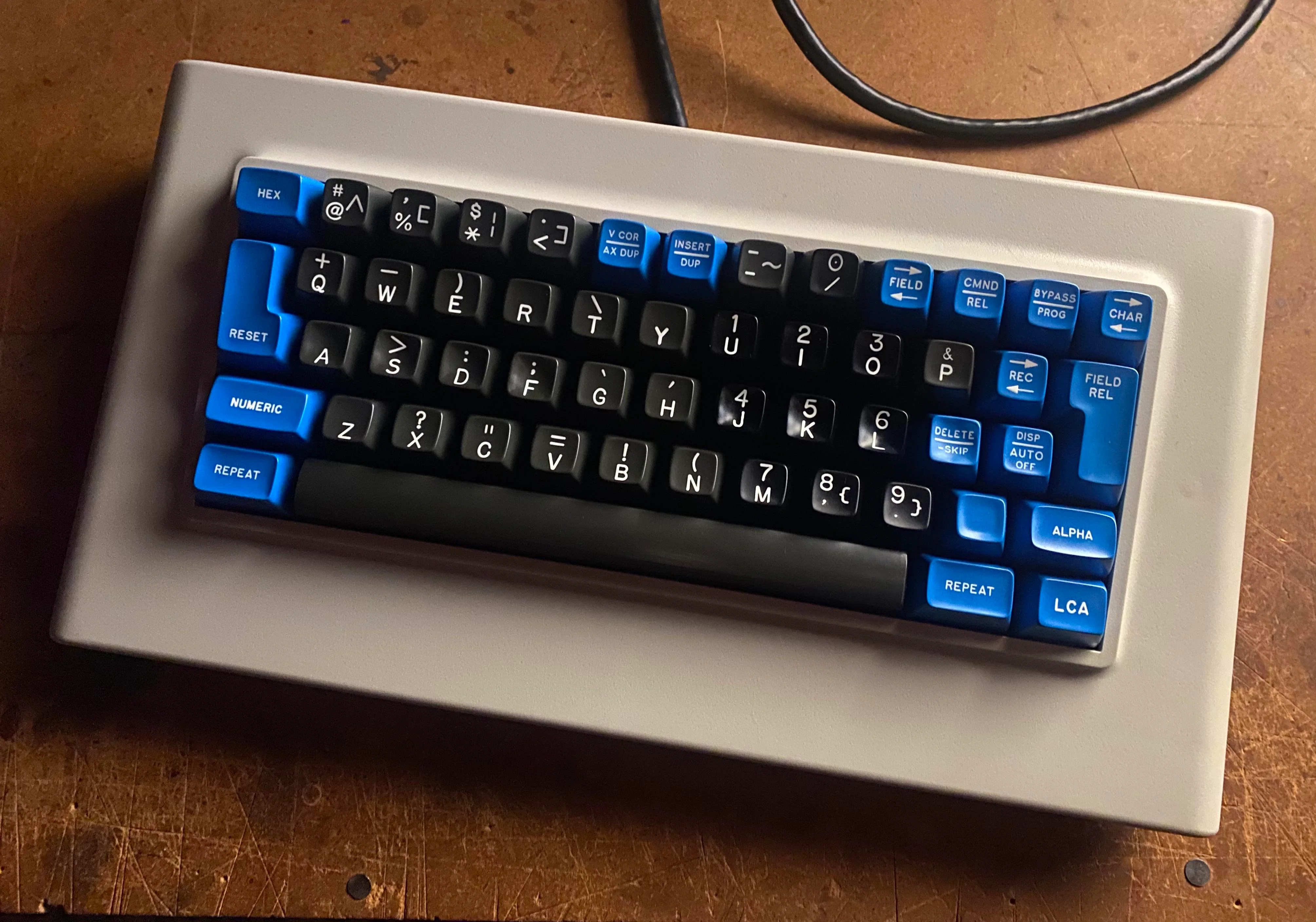

Look at this gorgeous, a e s t h e t i c, Cortron board, photo courtesy u/catsontuesday:

Shamelessly stolen from kbd.news’ keyboard spotting column, a retro board lover’s goldmine.

14 Likes

Here are some of the boards I’ve used as explicit inspirations when designing stuff:

  • IBM Beam Spring 75-key:

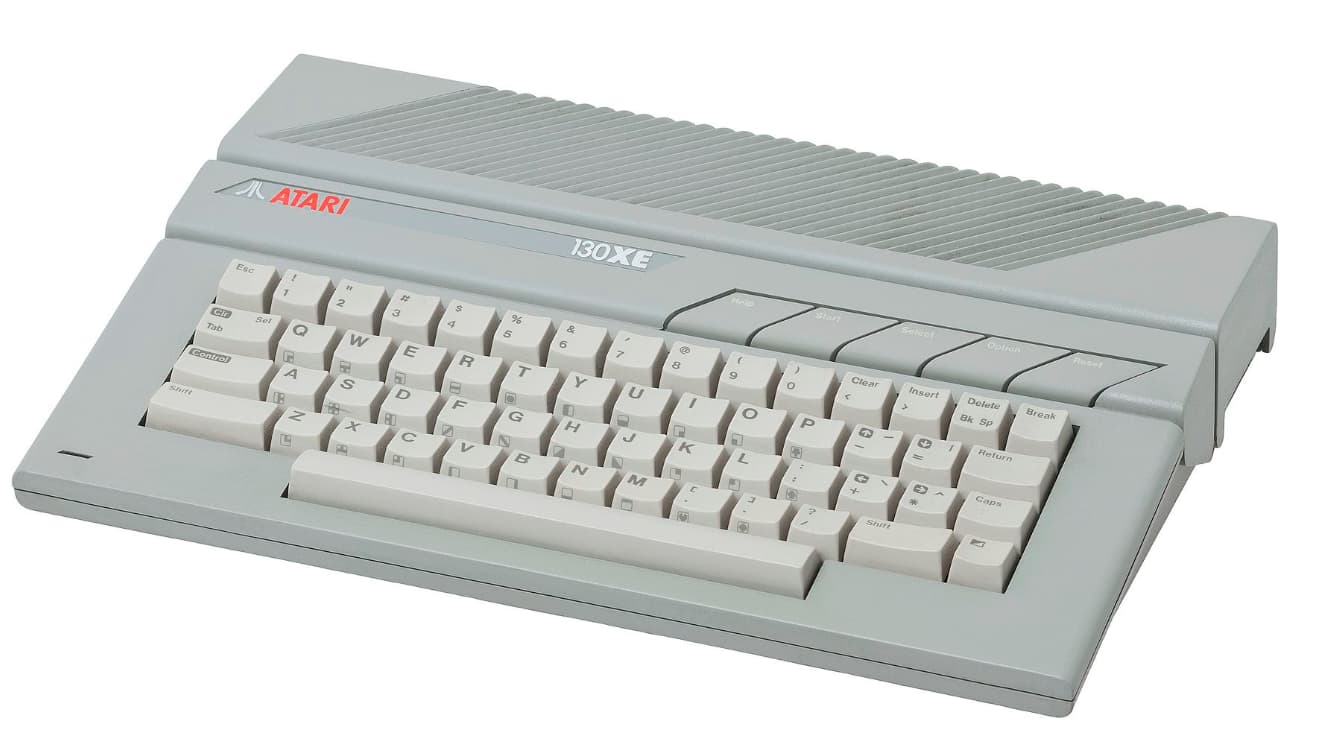

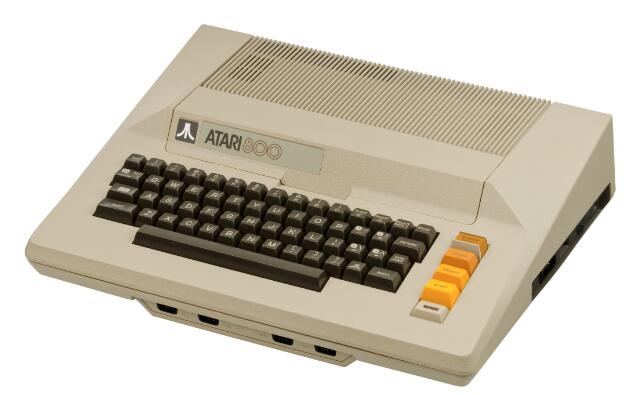

Atari 800 and XE

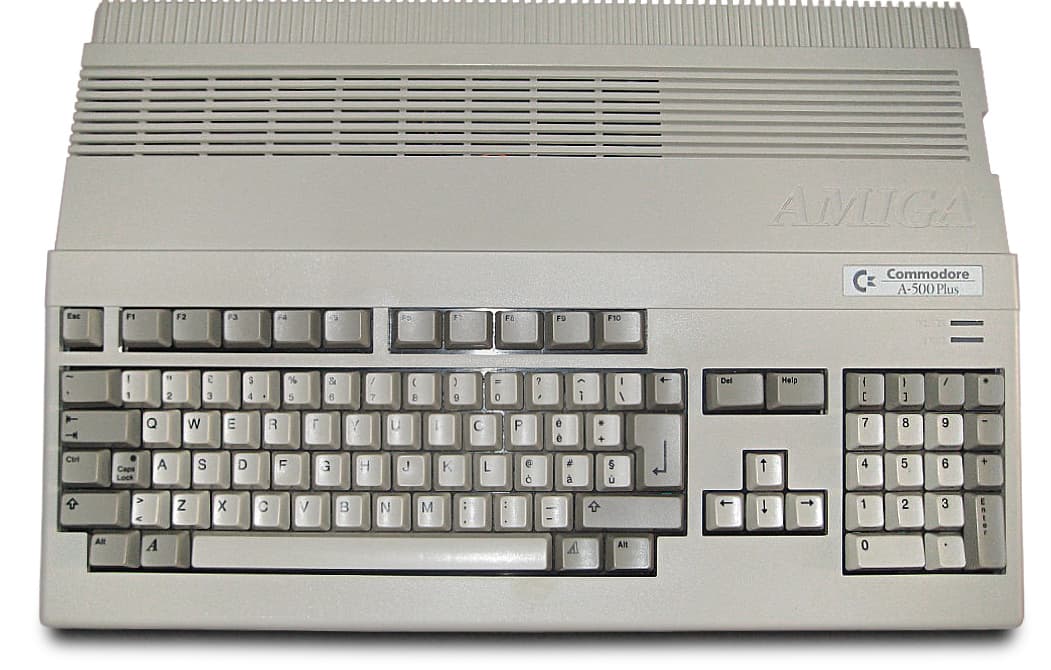

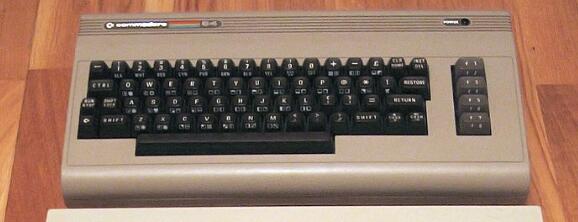

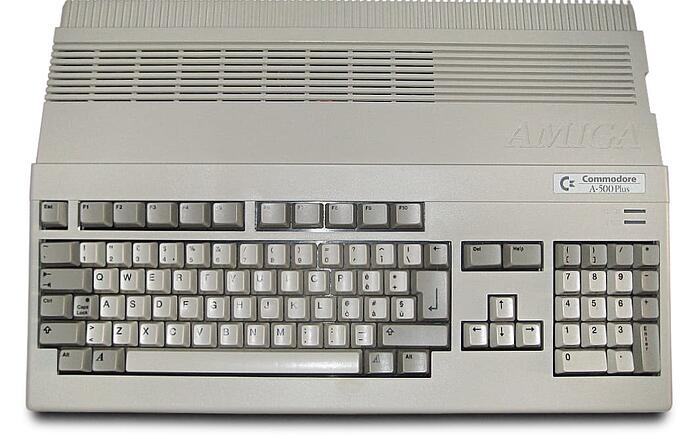

Commodore 64 and Amiga A500:

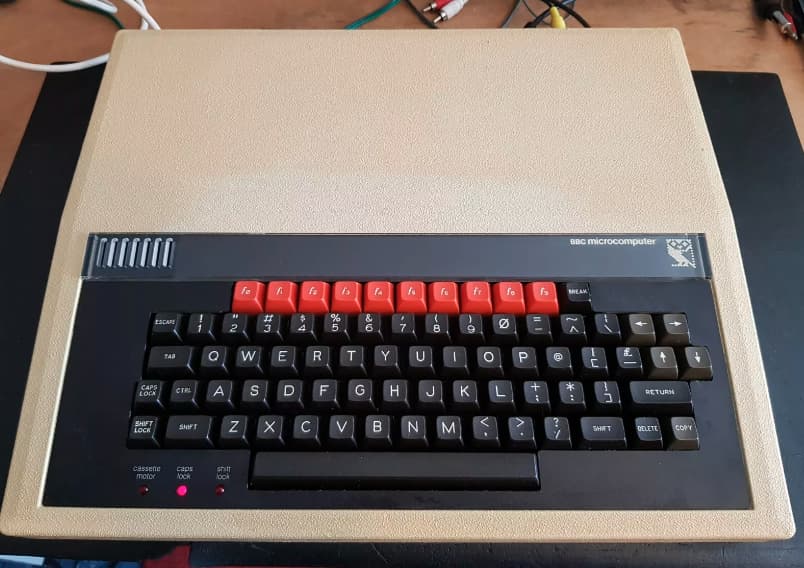

BBC Micro (look at that F row. Just look at it!):

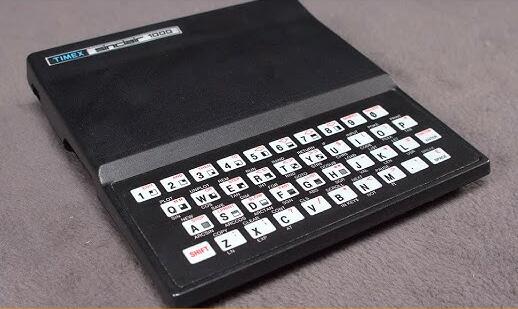

Timex Sinclair (dear god, only the legends though):

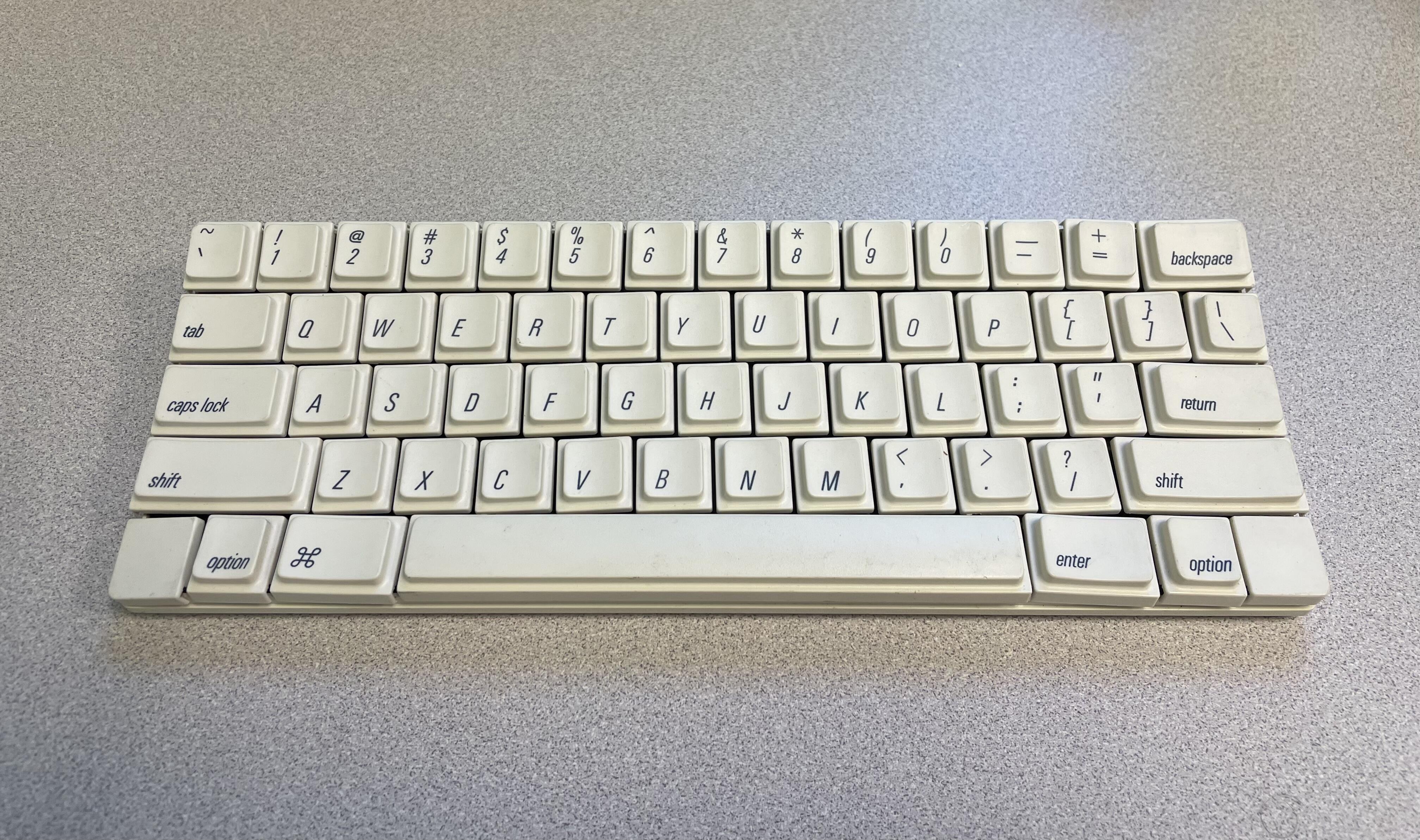

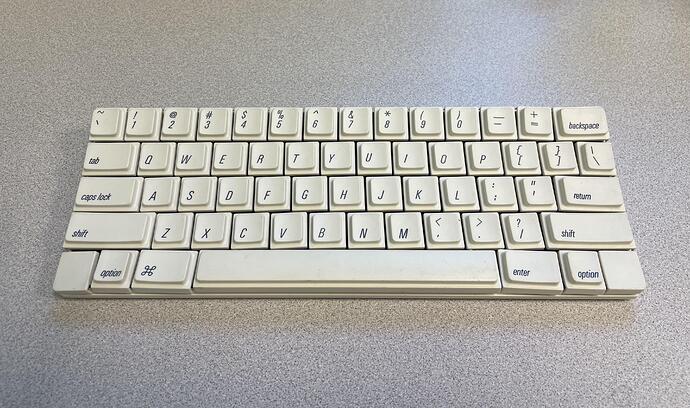

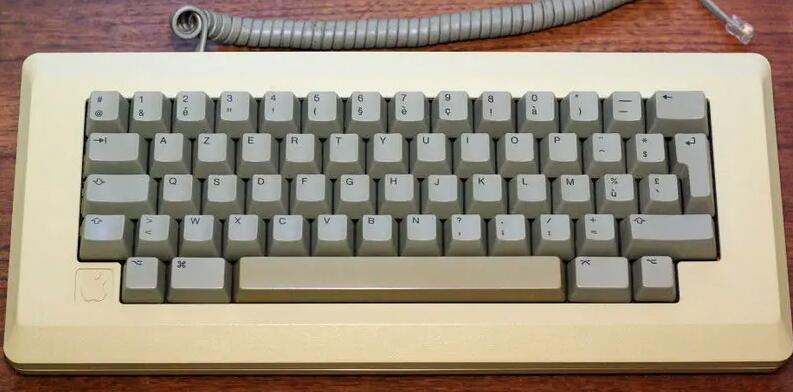

Oh, and can’t forget the Apple M0110 (and its HHKB descendant):

11 Likes

Not to immediately derail this thread XD but … I’ve seen a few of your builds, but don’t recall any Atari-inspired designs. Can you share them?

1 Like

Really just the one, and it’s impressionistic at best. The yellow just screams Atari 8-bit to me, and from the XE models specifically I took the basic aesthetic of a rounded rectangle front profile extruded back and then plopped onto wedges. The aluminum plate was a fait accompli, part of a previous 3x order from Xometry.

Love the M0110. Don’t have one of those myself, but as far as personally curated Apple history, so far I’ve got an AEK I, AEK II, NeXT Non-ADB, and, improbably, a Cassie.

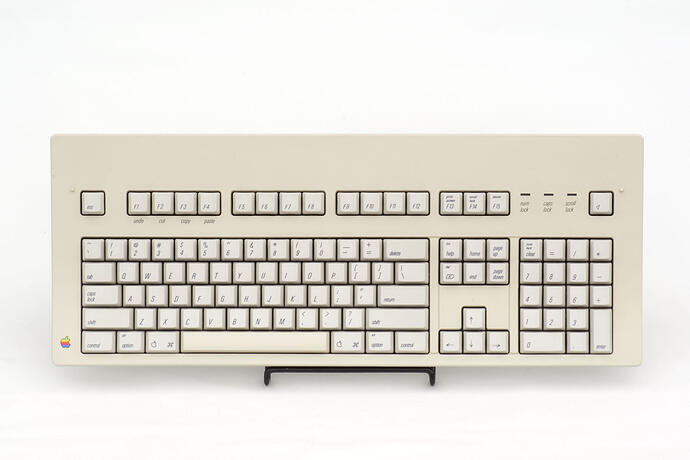

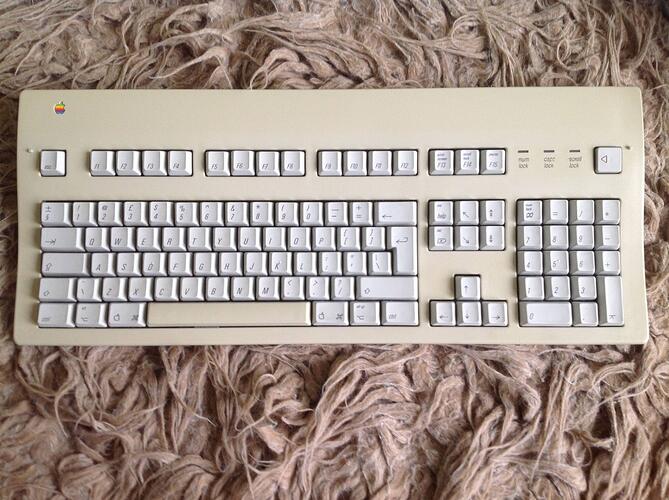

AEK I:

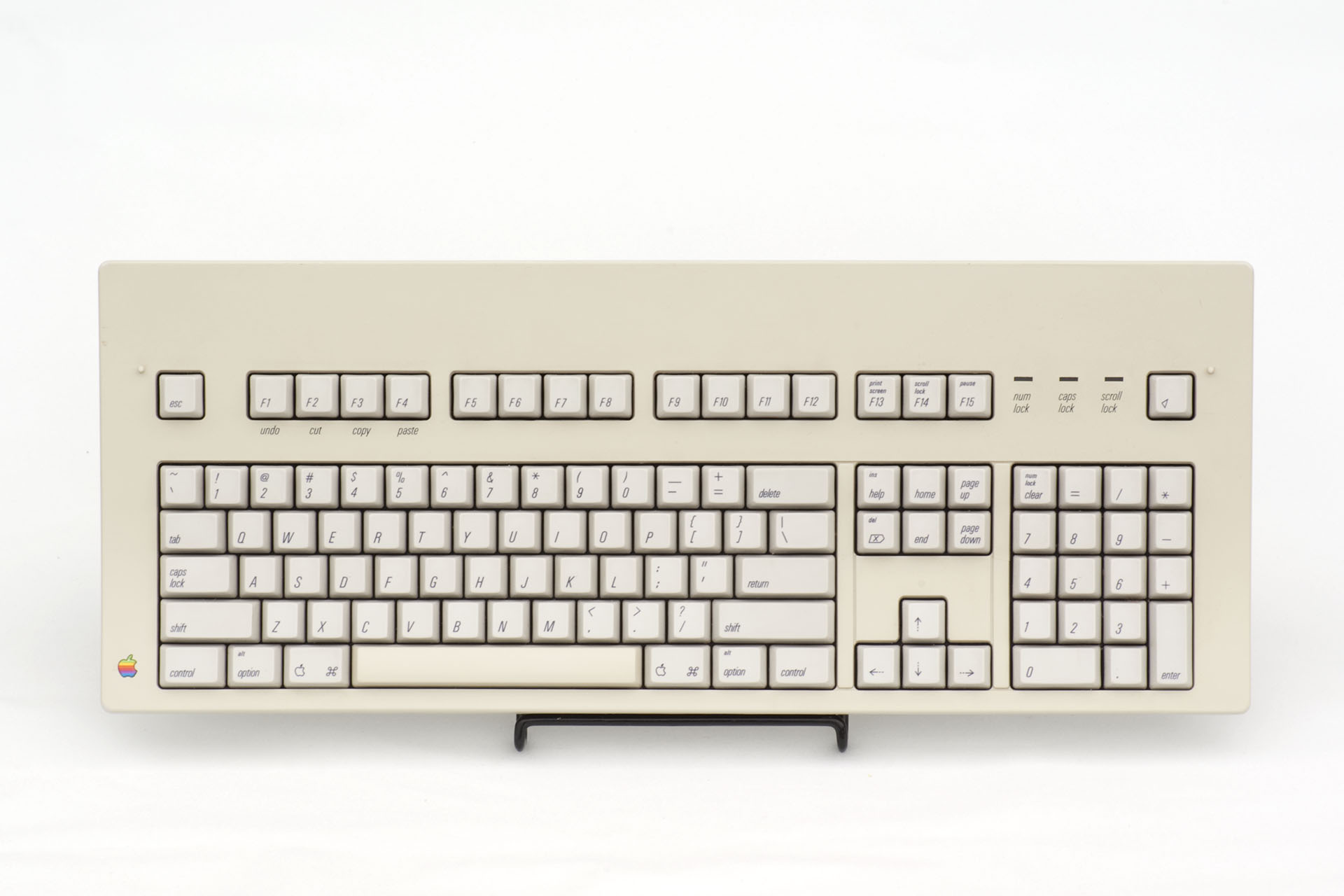

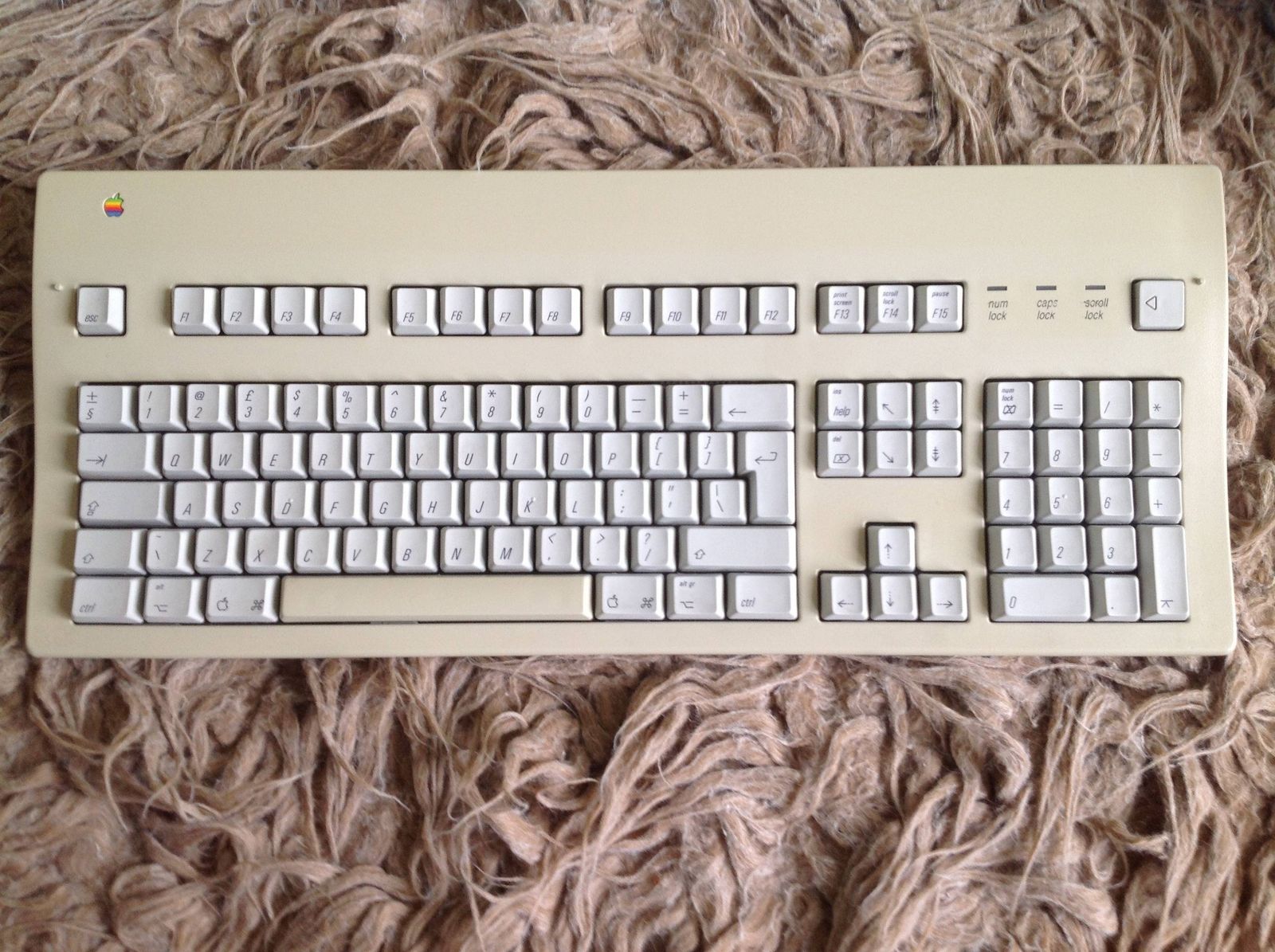

AEK II:

NeXT Non-ADB (the eagle-eyed will spy a lock light!):

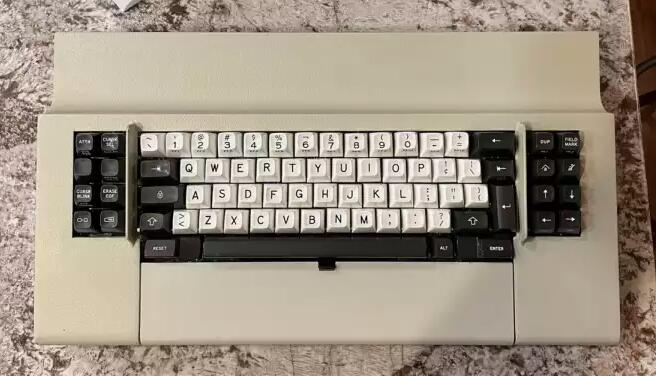

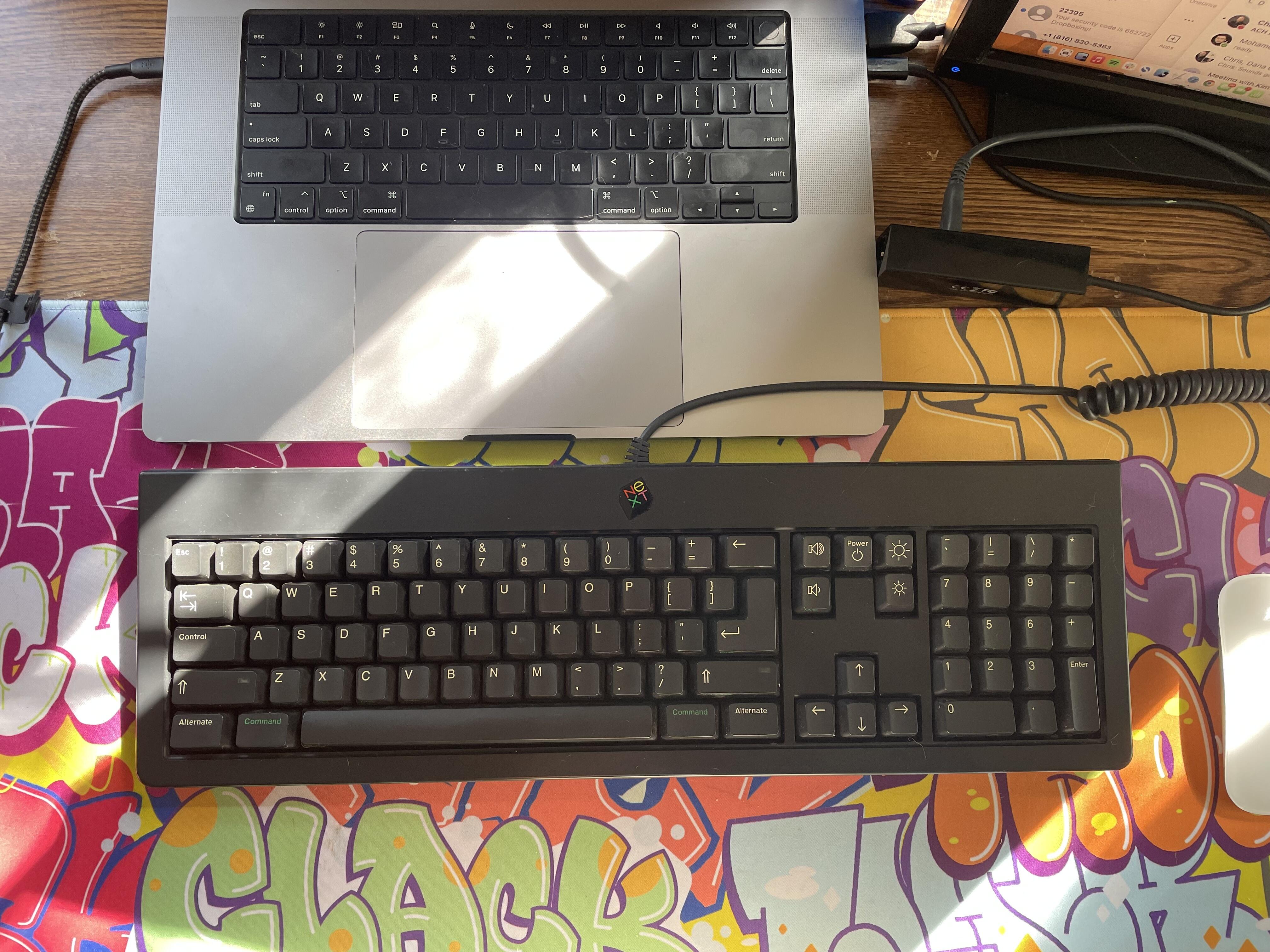

And lastly, my treasured Cassie (Apple prototype):


(For full disclosure, the first two are not my photos)

5 Likes

The Apple Proto Keeb. I want to see under the keycap so bad. Its like if Apple made the HHKB in 2004, but said “Case? What case?”

2 Likes

I’m not at work, but when I can I’ll snap a few pics for you :slight_smile:

In the interim, here’s a well-illustrated teardown from one of the project engineers.

1 Like

Then imagine it actually happened two decades earlier. Crazy.

"I joined Apple in May 1984 and Cassie was my second or third project, probably around '85 or '86.

Such an interesting design. It basically seems like a high-end game-pad, with nylon sliders over posts and carbon contacts. @kimslawson, surely you’ve at least tapped out a few words on it; how does it feel?

1 Like

It’s rough, really. I imagine some of that is down to it being 40 years old and needing a good cleaning. Some of the keys stick. It’s very tactile, very scratchy/frictiony, the caps rotate freely in a disconcerting way. I’ll try to make a typing video to demonstrate when I can.

3 Likes

Paging @HokuraChan… First typing test (forgive the fluorescent light hum).

The feel is somewhat stiff and tactile, with quite a short actuation/travel distance somewhere between laptop keys and a modern low-profile switch (choc). It would be illuminating to see a force curve, I’m sure. I haven’t investigated why some of the keys go crunch and stick (e.g. Option, Enter). The spacebar appears nicely stablized, indeed, for a 7.5u key!

4 Likes

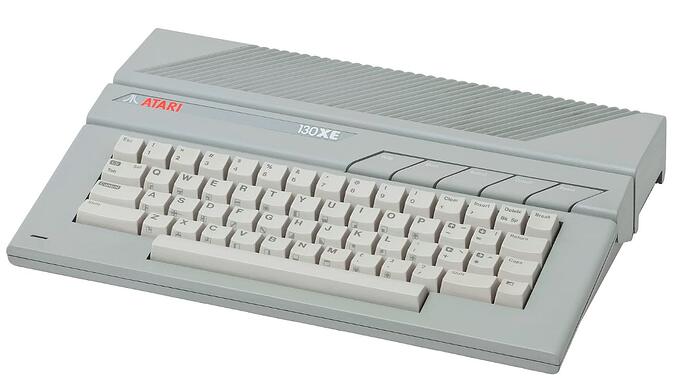

I had the Atari 130XE… and I have an Apple M0110 with Orange Alps in it. I don’t know, I love my new modern thocky keyboards a lot.

3 Likes

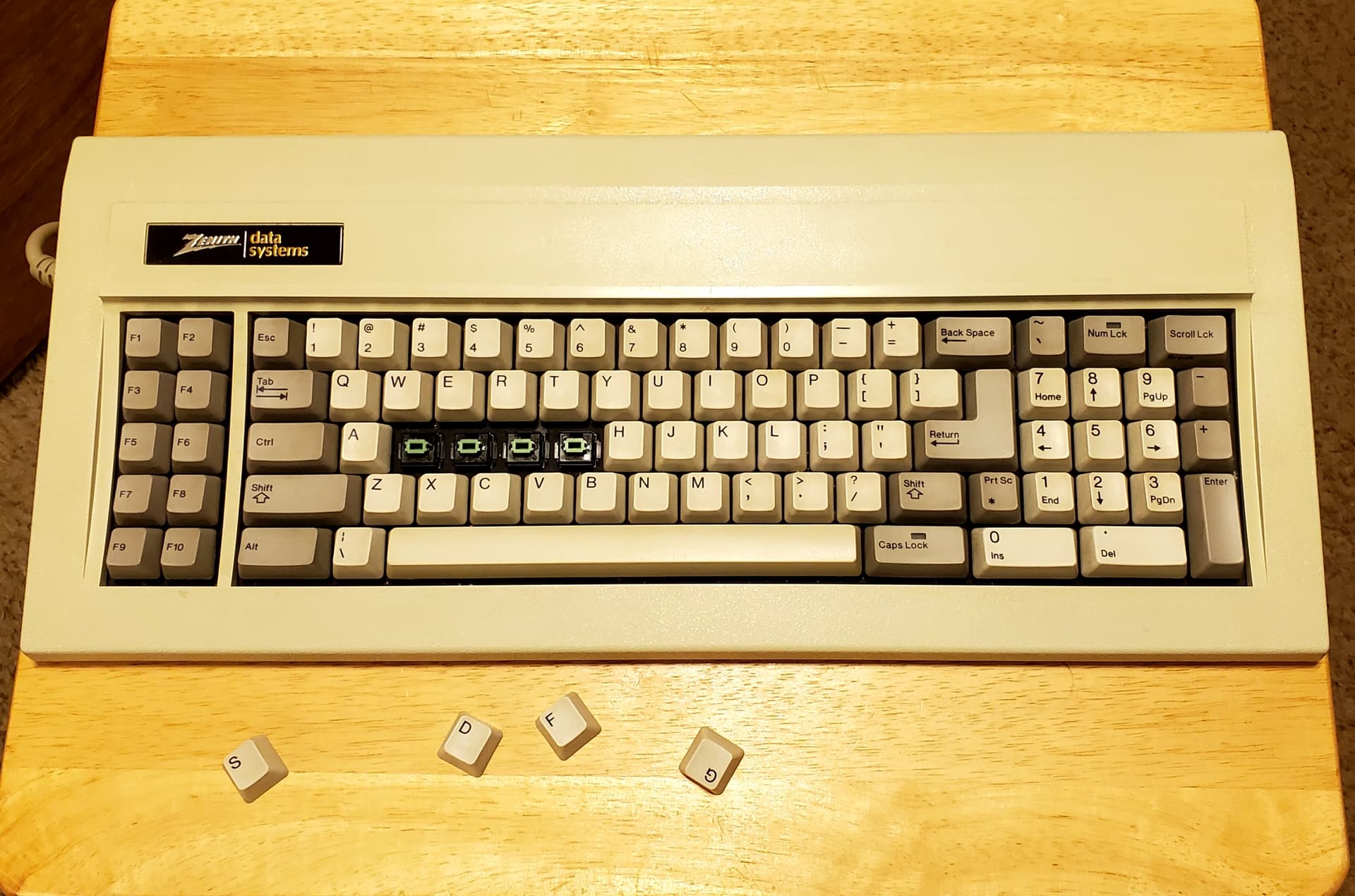

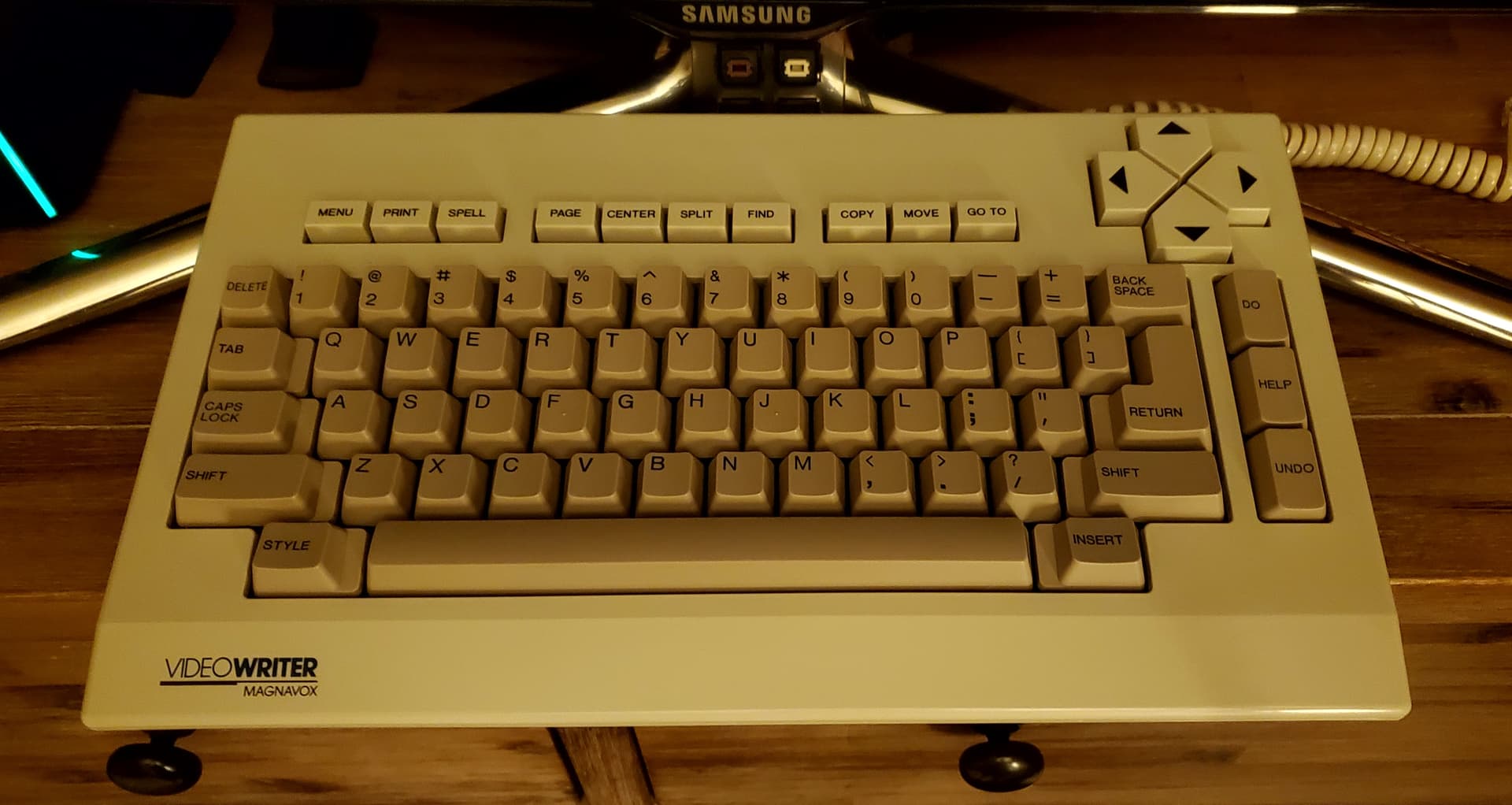

Here’s two I’d consider GOBs! A gold badge Zenith Z150 with SKCL Greens that I got a while back that is in really good shape. Then a Magnavox Videowriter with SKCM Browns I’ve had for awhile that is excellent, almost NOS condition.

As an aside if you do go hunting for brown ALPS these are the best option IMHO. As the Videowriter was a word processor that hooked up to your TV, so the majority of them saw lighter usage & if you’re lucky basically no usage! I think since they were marketed as a cheaper alternative to PCs at the time, but PCs drastically dropped in price only a few years after the Videowriter released is the reason for that.

4 Likes

That enter key on that Zenith seems powerful

1 Like

0.25U away from being a true BAE.

I need to track down a nice ZDS board. They look so nice. I’m always put off by the horror stories of needing to clean or repair old Alps switches, though.

1 Like

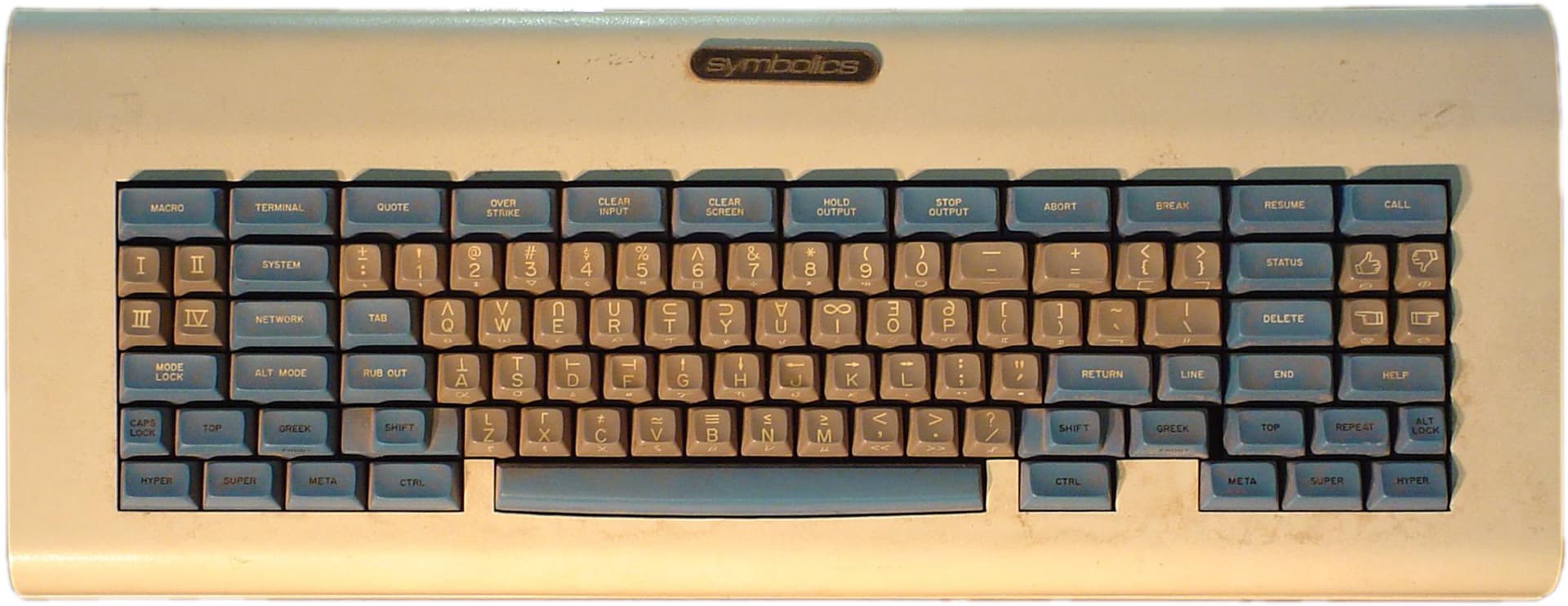

Crossposting because I feel like the Space Cadet/Lisp Machine board belongs here.

2 Likes
