HS60 v2

https://dixiemech.com/shop/hs60

Yay HHKB layout finally!

2 Likes

Interesting! Would you happen to have any pictures of completed boards using this PCB?

1 Like

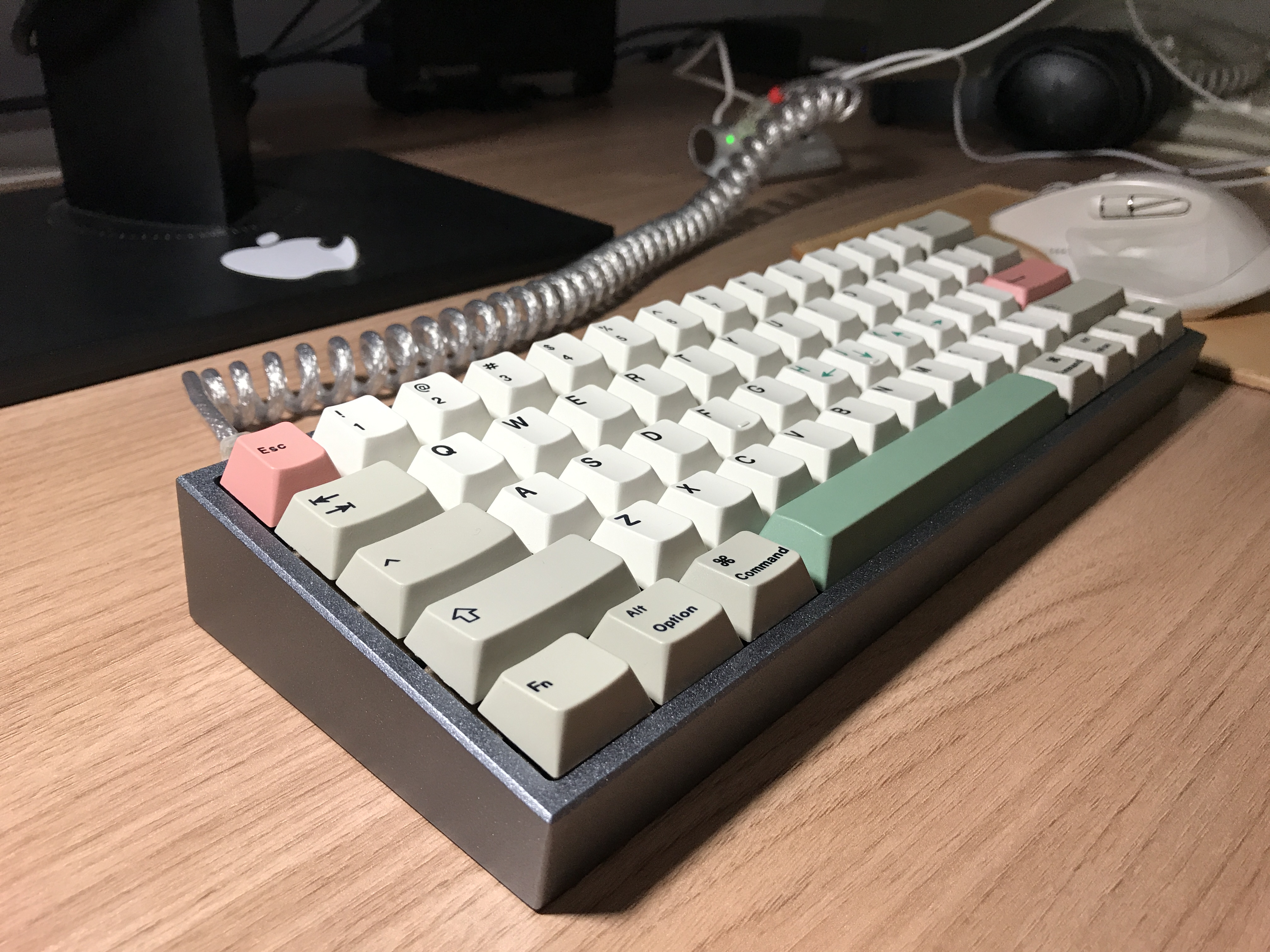

Here you go. My very first build using HS60 v1 and a Pok3r metal case (until I get my Klippe). :blush:

P.S.: Keycaps are EnjoyPBT 9009 from KBDfans (round 2).

2 Likes

Sweet! Thanks. :slight_smile:

1 Like

I realize supporting too many layouts with the hot swap would be pretty difficult, but I would love to see something like the main layout but with split space bars!

1 Like

And now alongside the gray Klippe+:

2 Likes

Nice, did you already receive the PCB?

Nope, someone requested a picture of a build with HS60 v1. :slight_smile:

That Klippe+ looks nice, do you have more pics?

Sure, man! Here you go: https://imgur.com/a/rIHjjId
These pictures where taken in the night time. Let me know if you’d like pictures under daylight. I can take more tomorrow. :slight_smile:

1 Like

Does anyone know when dixie mech will ship these?

Hell I’d be happy if we could get split back space & split R shift on these hot swap PCBs without having to buy the HHKB variants. Even if the installed hot swap sockets in those positions were in the normal ANSI placing & they just added the pads/holes on the PCB while tossing in some extra sockets so we could DIY our preferred layout.
