[IC] Cajal: A 45% Keyboard

Introducing the Cajal. [kaˈhal]

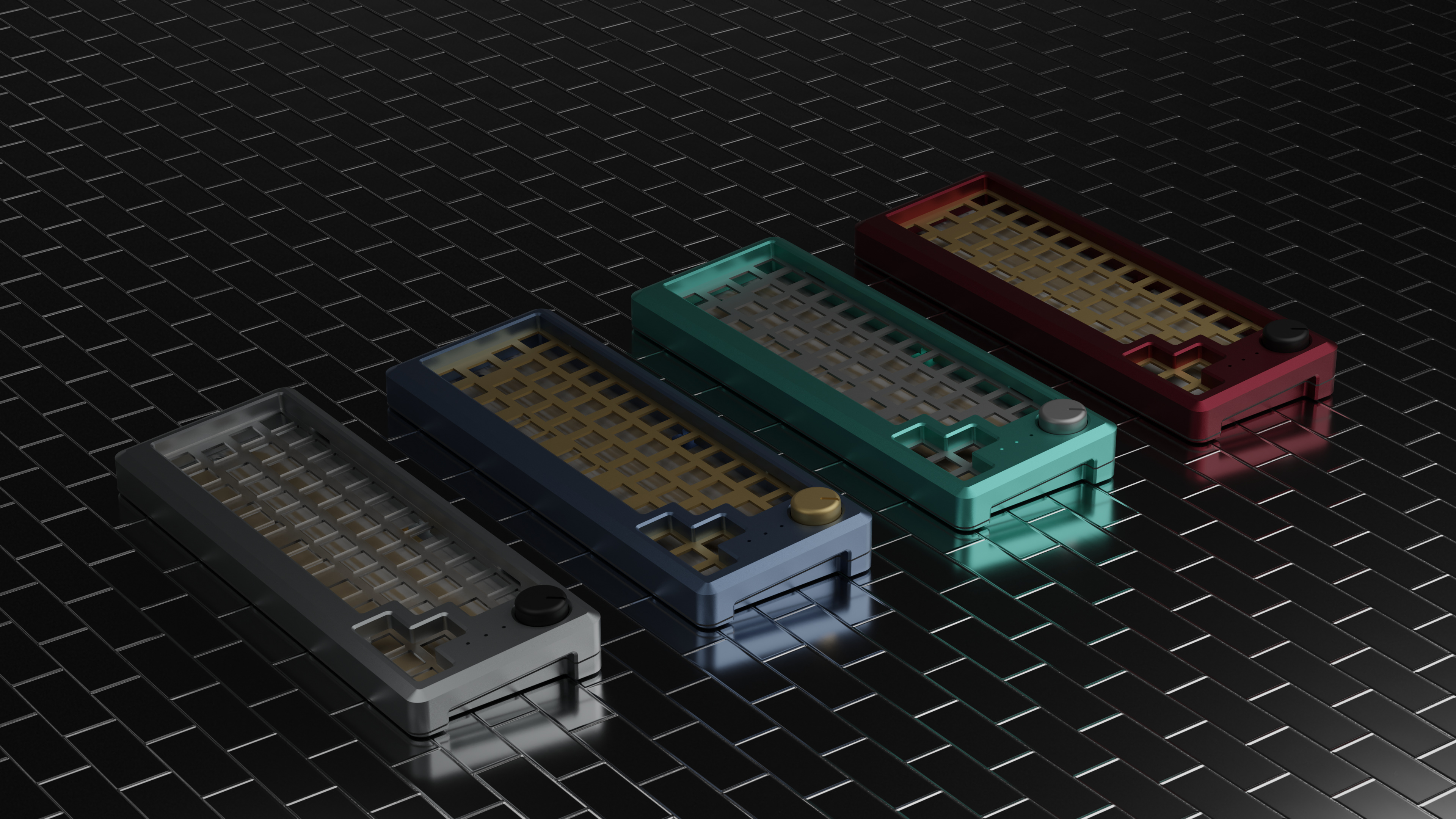

The Cajal is a 45% hotswap keyboard with a detached arrow cluster, a prominent volume knob, and an RGB underglow ring. It also weighs in at around 2 kg, making it one of the heaviest boards for its size. This keyboard is a culmination of all the features that were requested from the Neuron GB, along with some new design features that haven’t yet been implemented in this layout. I have added indicator lights and a new (to my knowledge) gasket mount using stoppers to adjust the compression on nitrile tabs attached to the plate. PVD-coated brass and sandblasted polycarbonate plates will be available, as will hard and soft durometers of gasket material. With only four plate attachment points, the Cajal was designed to flex and give a cushioned bottom out. By changing plate material, gasket hardness, and gasket compression tightness, users will be able to tailor their experience to their preferences. Thank you for reading, and please let me know what features you would like to see in the final release when the Group-Buy comes. Nothing will start before the Neuron GB ships in early 2020, so prepare your wallets for a Spring 2020 release.

About the Name
The Cajal is named after Santiago Ramón y Cajal (1852-1934), the father of modern neuroscience. His studies of the brain were crucial to the discovery that the nervous system consists mainly of individual cells, a theory called neuron doctrine. For this discovery, he was honored with the Nobel Prize in Physiology or Medicine in 1906. His contributions to neuroanatomy and detailed drawings of neural structures are still relevant to our understanding of the nervous system more than a hundred years later. In addition to his scientific discoveries, Cajal was a writer of science fiction short stories under the name “Dr. Bacteria”, a bodybuilder in his younger years, a talented painter and artist, a doctor in the Spanish Army, and as a child, was briefly imprisoned in a local church for blowing a hole in his neighbor’s front door with a homemade cannon. This keyboard is a minor tribute to his brilliance.

Features:

  • 4.4lb (2kg) case with 5 degree typing angle.

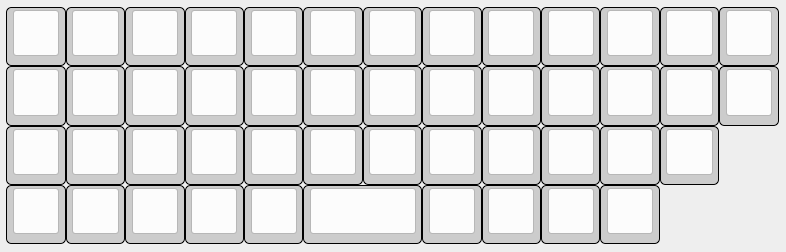

  • QMK-compatible fixed layout white hotswap PCB with RGB underglow and daughter board to isolate PCB/plate from cable. Designed by Worldspawn. (KLE Layout here.)
  • Gasket mounting style with individual compression control and 40A or 70A durometer nitrile rubber gaskets above and below plate tabs.
  • PVD-coated brass or sandblasted polycarbonate plate.
  • Frosted acrylic diffuser layer for RGB underglow.
  • Three SMD LED indicators.
  • One included EC11 rotary encoder.
  • One big-ass knob, available in gold or black PVD brass, or silver or black anodized aluminum.

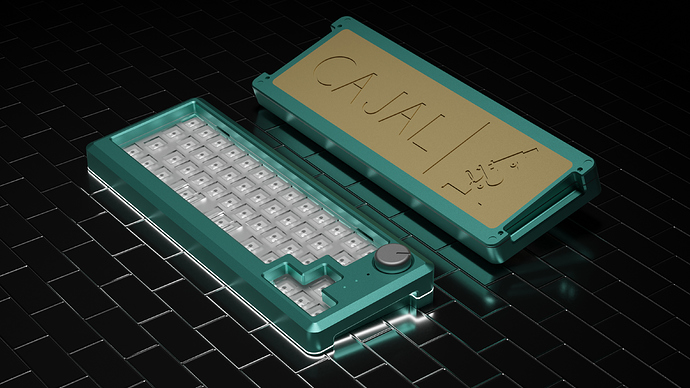

  • One big-ass sandblasted brass weight, engraved with Cajal and microscope based on Cajal’s favorite Zeiss microscope later in life.
  • Approximate price range $300-400.

If interested, please fill out this IC form.

Thanks for your time,
Walletburner
