[IC] Dolumina 65


#1

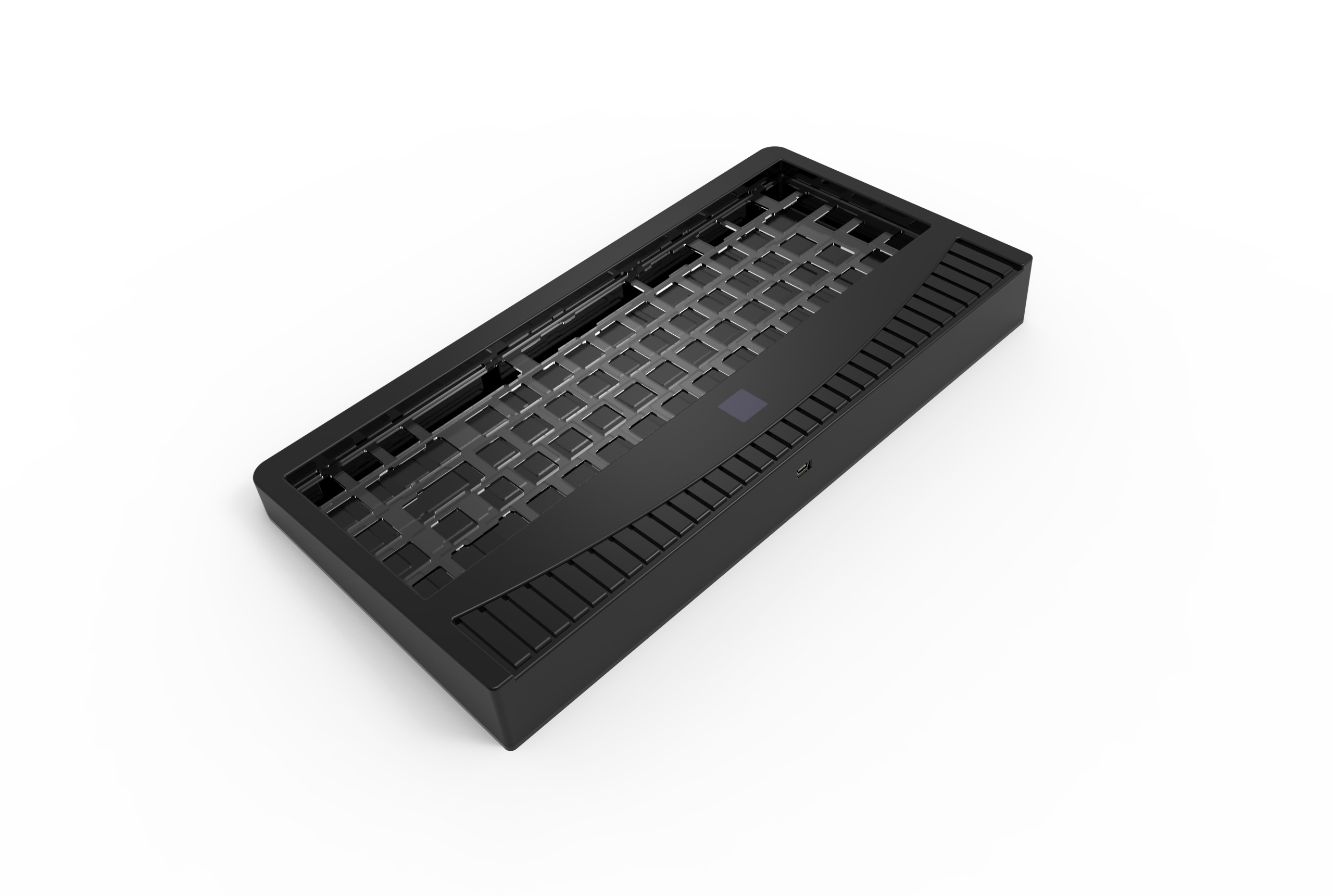

Dolumina 65% is 65 version of Dolch Keyboard. I’m looking for making Group Buy at September, but the plan is just plan. Price will be fixed within $350(without shipping cost). The quantity is limited to 30 sets.

When the final design is decided, I will upload it with sample photos again.

Include:

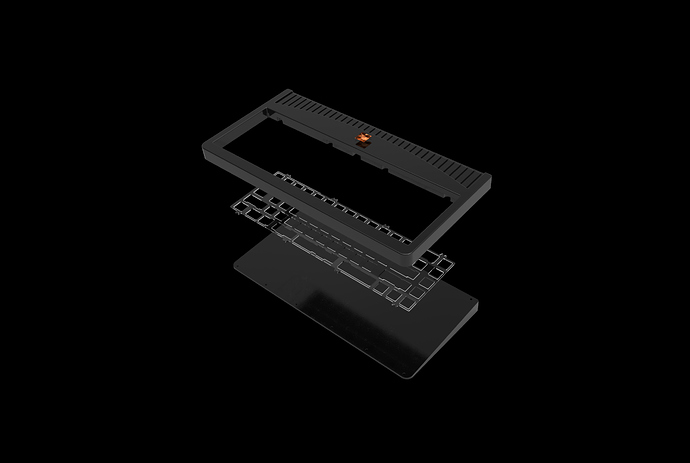

  • Housing (Top, Bottom, Plate)
  • USB Mini Breakout Board
  • Cable for Extending USB
  • Logo Sticker
  • Rubber Feet
  • Guarantee Card

Housing Specification:

  • 6 Degree Slope
  • Polycarbonate Plate or Aluminum Plate
  • USB Mini-B
  • Glass Sanded(or Plastic Media) and Anodized Aluminum 6061
  • Top Mounted
  • Support Spacebar Split

You can use any type of 65 PCB that matched with Plate.
Please let me know if there is a problem with the article. I’ll take action.
Thanks.


#2

As with any 65% one of my main questions is; will it have an arrow blocker? Or would you consider it :stuck_out_tongue:
Also, this things looks perfect for zomby apocalyps :smiley:


#4

Can you tell me what the Arrow Blocker is? I’ll consider it if I think it’s a good option :grinning:


#5

Two of the more common bottom row layouts for 65% are:

  • 1.5-1.5-7-1.5-1.5-1-1-1 which leaves no gap between the modifier keys and the arrow keys but requires 1.5u modifiers and a 7u spacebar (included in GMK kits but often a separate kit in other buys)
  • 1.25-1.25-1.25-6.25-1.25-1.25-X-1-1-1 which uses standard 1.25u modifiers and 6.25u spacebar but leaves a 0.5u gap (X) between the modifiers and the arrows where a blocker is commonly placed (see Canoe or Noxary 268)

#6

looks great - what layout options will there be, or will the plate file be open source?


#7

Oh no!!!

Cary has been working on an identical design for 3 months, I am sure the OP has been conceiving this for a while, and somehow both ICs are posted today!!

https://geekhack.org/index.php?topic=97373.0

Maybe some differentiations can be made so there is not a severe cannibalization…


#8

Looks like the ALF version has a slightly smaller bezel and a blocker by the arrow keys. I like both of those better. BUT… this one has a 6 degree slope, which I prefer over the ALF 7 degree. Hmm… decisions.


#9

omg… I designed Tenkeyless version in May(http://gall.dcinside.com/mechanicalkeyboard/48336), and I turned to make 65 version in june. I think It’s because I don’t read geekhack.

Anyway all fault is mine. I’m sorry, really. I will stop this project at overseas.


#10

Hey my friend, it’s not your fault, just unfortunate two identical designs were made by two people.

Pls feel free to release to public as this is your design


#11

Where can we bug it ?


#12

Beautiful case, really like the idea of an aluminum plate in this with the glass. Good luck on getting it all finalized!
