[IC] MKC65---Price USD99+, Full CNC Case, Three-in-one Structure, Simultaneously Support Rotary Knob & LED Light Sign Custom Keyboard

Hello everyone,

We are excited to introduce the MKC65, the latest addition to the MKC series! Similar to the MKC75, this keyboard is designed with an economic focus, making it an accessible entry-level custom keyboard for a wide range of users. The distinctive and layered M-shaped pattern of the MKC65 is inspired by th e initial letter ‘M’ in MKC.

We sincerely hope you will like MKC65 because it’s part of our ongoing efforts to provide entry-level custom keyboards for enthusiasts worldwide. Now, let’s explore the MKC65 together!

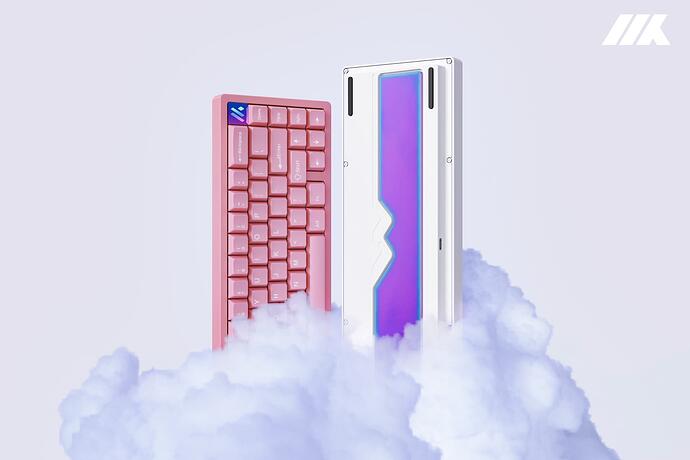

MKC65 Renders

MKC65 Prototypes

MKC65 Pre-Order Page


  • Compact 65% layout.
  • 6.5° typing angle for a more comfortable typing experience.
  • 100% CNC-machined with 6063 aluminum case.
  • Alu Internal Weight, adding to the overall weight and stability.
  • Simultaneously support two functional modules (Rotary Knob & Light Sign), also compatible with JRIS80 Rotary Knob/LED Light Sign.
  • Three-in-one design with Top Mount, Plate Gasket Mount, and PCB Gasket Mount for an enhanced keyboard experience.
  • Supports tri-mode PCB (Wired, Bluetooth and 2.4ghz).
  • Supports Plate and Plateless Build.
  • Supports Caps Lock Indicator Light.
  • 2 x 2200mha large battery capacity.

MKC65 Specifications

  • Typing angle: 6.5°
  • Front height: 9 mm
  • Material: Full CNC 6063 aluminum
  • Dimension: 319.85110.329.95mm
  • Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount
  • QMK/VIA Supported(wired)
  • Support PCB stabilizers
  • Unbuilt Weight
    With PVD WEIGHT: 1.23kg
    With Alu WEIGHT: 1kg
  • Built Weight
    With PVD WEIGHT: 1.45kg
    With Alu WEIGHT: 1.22kg

Three-in-one Structure

Three-in-one structure (Top Mount, Plate Gasket Mount, and PCB Gasket Mount) is a versatile keyboard mounting system that combines the distinctive features of these three structures for comprehensive performance. Users can customize based on personal preferences and usage scenarios.

Support Rotary Knob & LED Light Sign at the same time

The four keys located on the rightmost row of the MKC65 keyboard (Insert, Delete, PgUp, and PgDn keys) can function as a customizable module. The Rotary Knob and Light Sign can be interchanged among any four keys, and they don’t necessarily need to be connected together.

However, please note that it supports a maximum of two functional modules simultaneously. For example, 2 * Rotary Knob, 2 * Light Sign, or 1 * Rotary Knob + 1 * Light Sign.

What can you customize for MKC65?

8 Case Options:

8 Weight Options:

5 PCB Options:

  • Wired Flex Cut Hotswap PCB( 1.2mm, Multi Layout , 7u split spacebar, No Per-key RGB, support QMK and VIA )
  • Wired Non-Flex Cut Hotswap PCB(1.6mm, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
  • Wired Solder PCB(1.6mm, Non-Flex Cut, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
  • Wired Per-Key RGB Hotswap PCB (Add-on only, 1.6mm, Non-Flex Cut, ANSI Layout, support QMK and VIA )
  • Tri-mode Hotswap PCB (1.2mm, Non-Flex Cut, ANSI Layout, No Per-key RGB, support Mykeyclub Software)Noted: The Tri-mode technical support is provided by IRISLab.

5 Plate Options:

Noted: We highly recommend using a PC/ POM/FR4 plate for Tri-mode PCB because the Brass and ALU plate will have a little affection for connectivity.

What’s Included in MKC65?

  • Full CNC Aluminum Top case *1
  • Full CNC Aluminum Bottom case *1
  • Weight (Anodized Alu Weight or Stainless steel PVD Weight) *1
  • Internal Alu Weight *1
  • PCB *1
  • Plateless or Plate *1
  • IXPE Foam *1
  • Poron Case Foam *1
  • Poron Plate Foam *1
  • Type-C Daughterboard with JST Cable *1
  • PCB GAS Silicone Column *12
  • Plate GAS Silicone Sock *18
  • Top mount screw and spacer *12
  • PCB stabilizers o-ring *12
  • Footpad *6
  • Poron case strip *6
  • 1.5mm hex key *1

Gift(will not send make-up or replacements)

  • 1 MKC Stabilizer Set
  • 1 Type-C Cable
  • 1 Pack of Extra Screw
    M2x3mm cylindrical head screw *2
    M2x8mm cylindrical head screw *2
    M3x5mm countersunk screw *2
  • 1000mha battery (Only for the Tri-mode Version Case) *2
  • Silicone pad of battery compartment *2

Pre-order information

Price: USD99+

Estimated time: Middle of Jan

Please fill in the MKC65 IC form. We love to hear from you.

Welcome to join our Mykeyclub Discord for more updates.

Thank you so much.

Best Regards
Mykeyclub Team


Why is this PCB add-on only??

Thank you for your feedback. We understand your disappointment that the RGB PCB is currently only available as an add-on. Due to the extensive variety of existing SKUs, we have had to consider offering the RGB PCB as an additional option. Nevertheless, we genuinely appreciate your input, and we will give careful consideration to your suggestions for future updates.
