Question for KLE and SwillKB wizards

Learning and discussion Custom keyboards
1

Is there a way to get SwillKB to draw the spacebar post that is common on Alps boards? Or do I have to suck it up and do actual work?

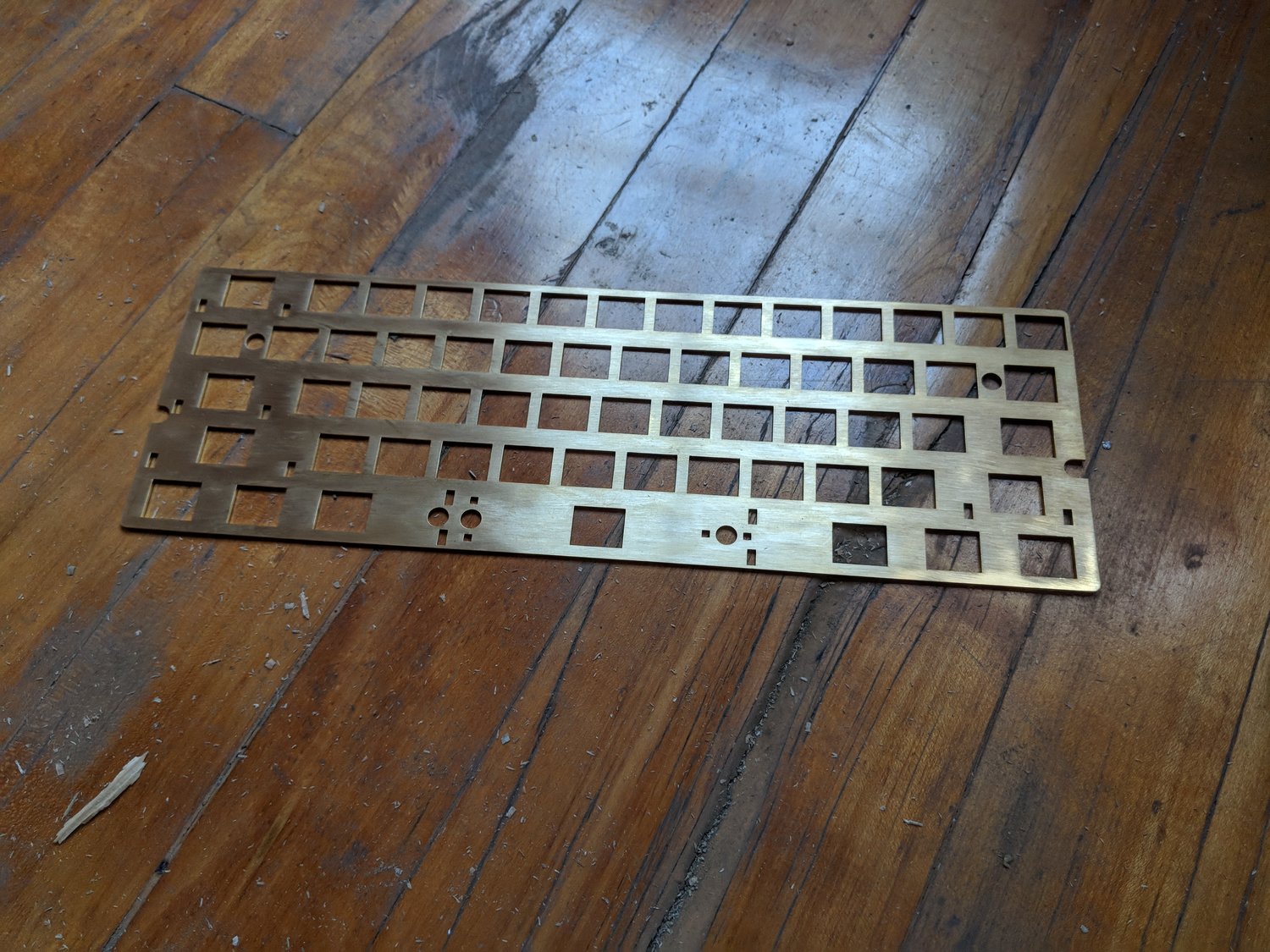

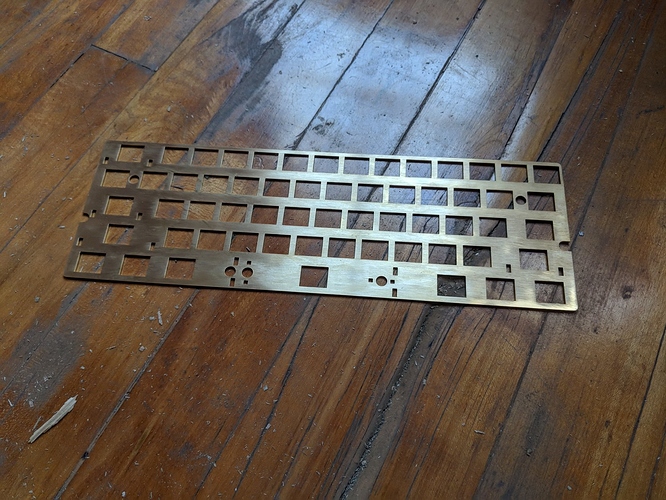

Not the stabilizers. There is usually a second slider and there is a circular mount for it. You can see it on the AEK plate pretty clearly. The extra circles around the spacebar stabilizers.

image-asset
image-asset1500×1125 342 KB

1 Like
2

if you just download the plate file from SwillKB as a DXF you can open it in fusion 360 and make some holes in it real easy. Quantrik made a super awesome video on how to use Fusion for Keeb design.
