Hi!

Did someone know DIY keebs with this potentiometers with three position? I mean 1 dimensional joystick, as for example asus rog azoth has?
Seems like it’s very complicated to find springloaded pots on market…
But it seems very comfortable to have one for example for scrolling. Is it even a good idea for realisation or encoder/trackpad is better?

Maybe it just a silly idea in my head:) But enyway why we don’t use thing like that in custom keebs?

Need to know keebtalk experts opinions!

1 Like
2

Some diy splits do have a joystick option. The Splitkb Elora comes to mind with its joystick module. I wouldn’t mind having one!

2 Likes
3

Oh, nice to know:)
I’d saw that qmk has joystick feature but didn’t see keebs with that.
Maybe I will test one

2 Likes
4

There’s also the Libra Mini with joystick, still on my, don’t need but absolutely would like to get list

2 Likes
5

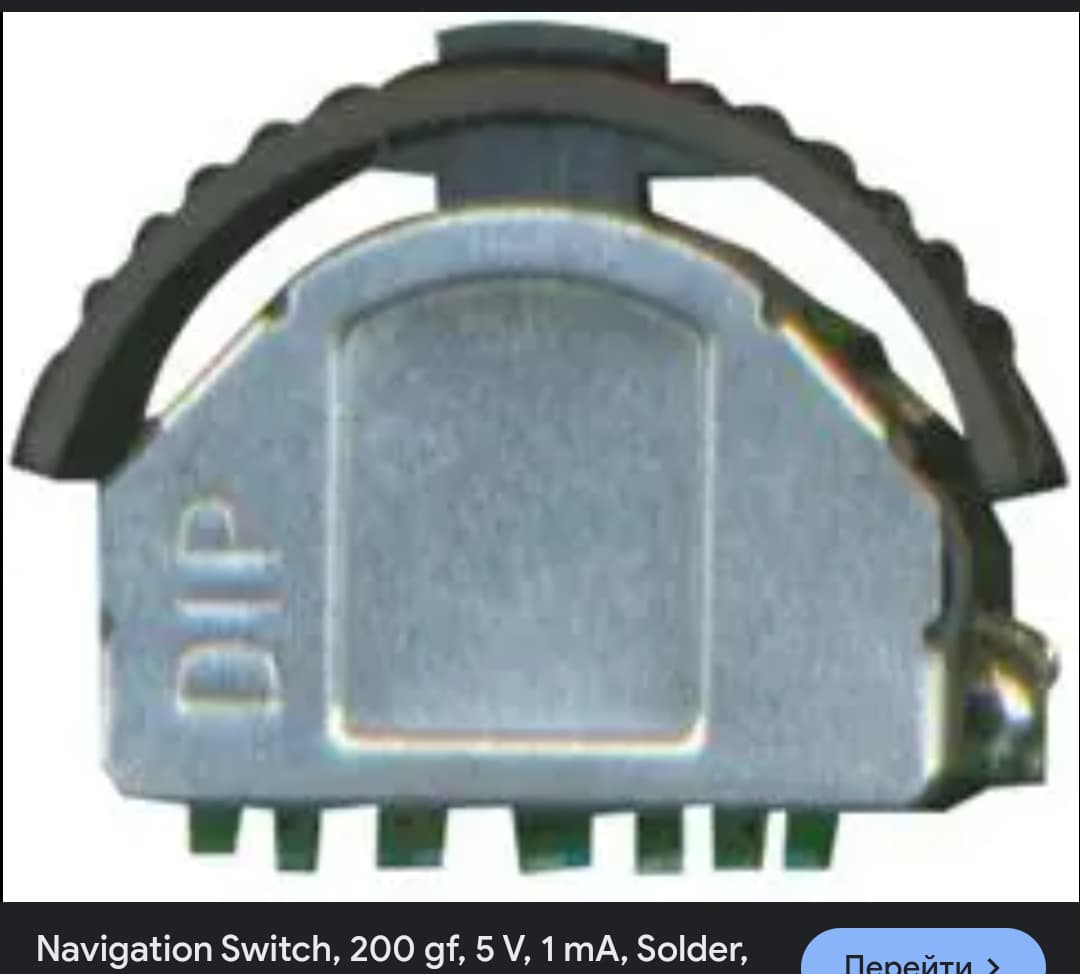

I’m accidentally find on tiktok this part:

1000008906
10000089061080×974 52.7 KB

It calls navigation button. In my dreams it’s very interesting to see how it works for example to scroll.

6

I actually do have one like that on the first mp3 player I got. From that one, it’s pretty stiff. Would not really be my first choice of navigation piece on a keyboard tbh.

1 Like
7

It’s just a random idea, I’m in searching for some exotic or nostalgic stuff

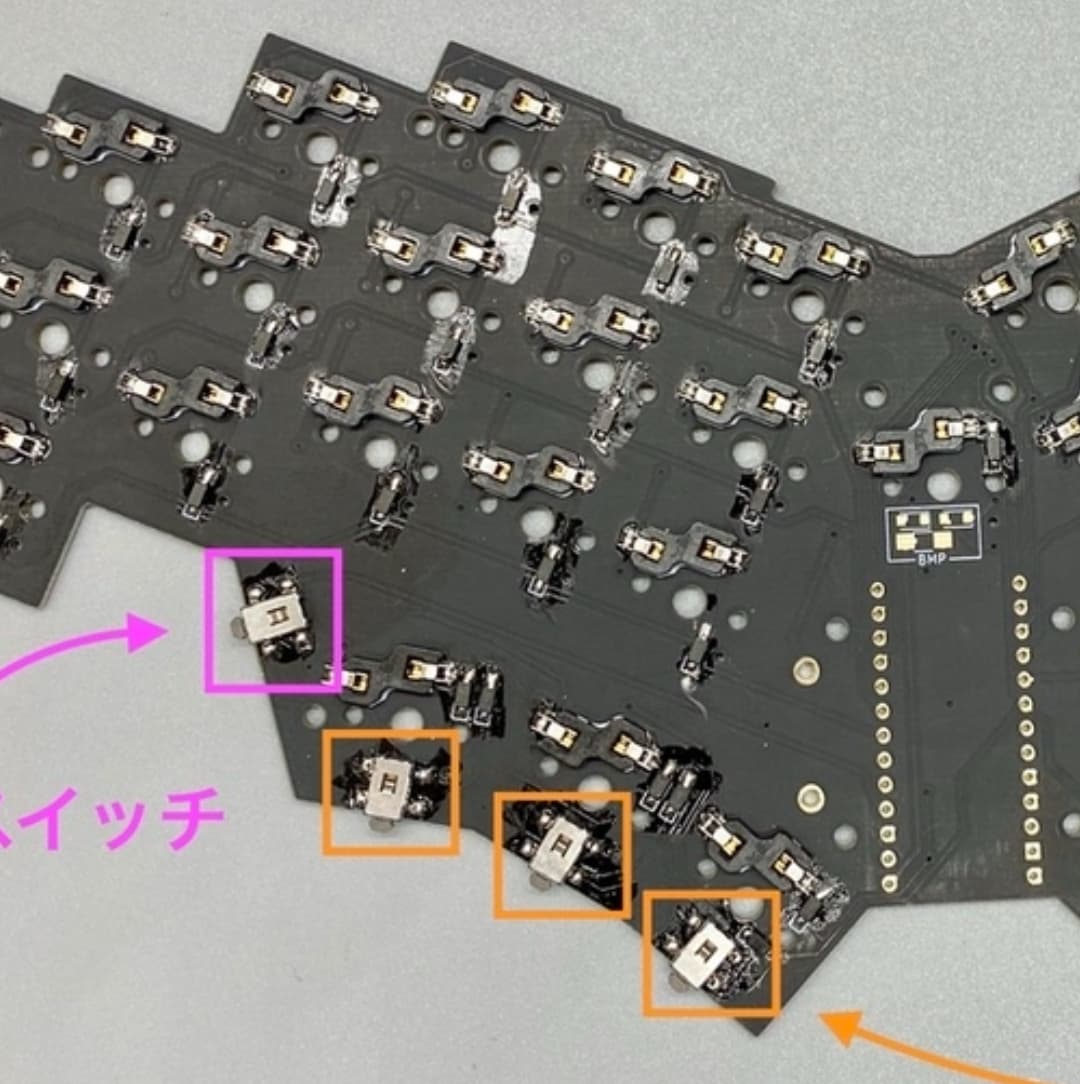

And I think maybe it’s not a bad idea to have this part like Bat43 keyboard have

1000008927
10000089271080×1084 103 KB

So I think maybe it’s quite interesting to play around it. Placing navigation button on same place where Bat43 has buttons, is it just stupid idea or unique feature? But yeah, it’s definitely something additional, just a bonus buttons.

8

I’ve got a few of those, and @exen904 is correct, they’re sorta stiff. They are also easy to break if you put much force perpendicular to it. Those look like right angle tactile switches across the bottom. I guess the idea is to hit them with your thumbs? (I’d not be a fan, as those switches can be all over the place in terms of how much force it takes to activate them.)

If you’re looking for exotic/nostalgic, the iPod navigation wheel is an interesting one that you can pick up parts for. See ANO Directional Navigation and Scroll Wheel, e.g.

The Blackberry trackball could be another interesting option. Seems pretty common on lots of sites, so random example from eBay.

In the realm of utterly silly, I’d definitely go for a board that had big ole’ toggle switches, especially if they have mollyguards. :crazy_face:

1 Like
9

Thank you for great ideas! Something like ANO navigation wheel seems really interesting! Why not? :slight_smile:
I agree that big toggle switches have a special place in my heart. If you able toggle something like nitro switch like in fast and furious movie, it’s definitely another level of typing experience:)

1 Like
10

you are right :slight_smile:

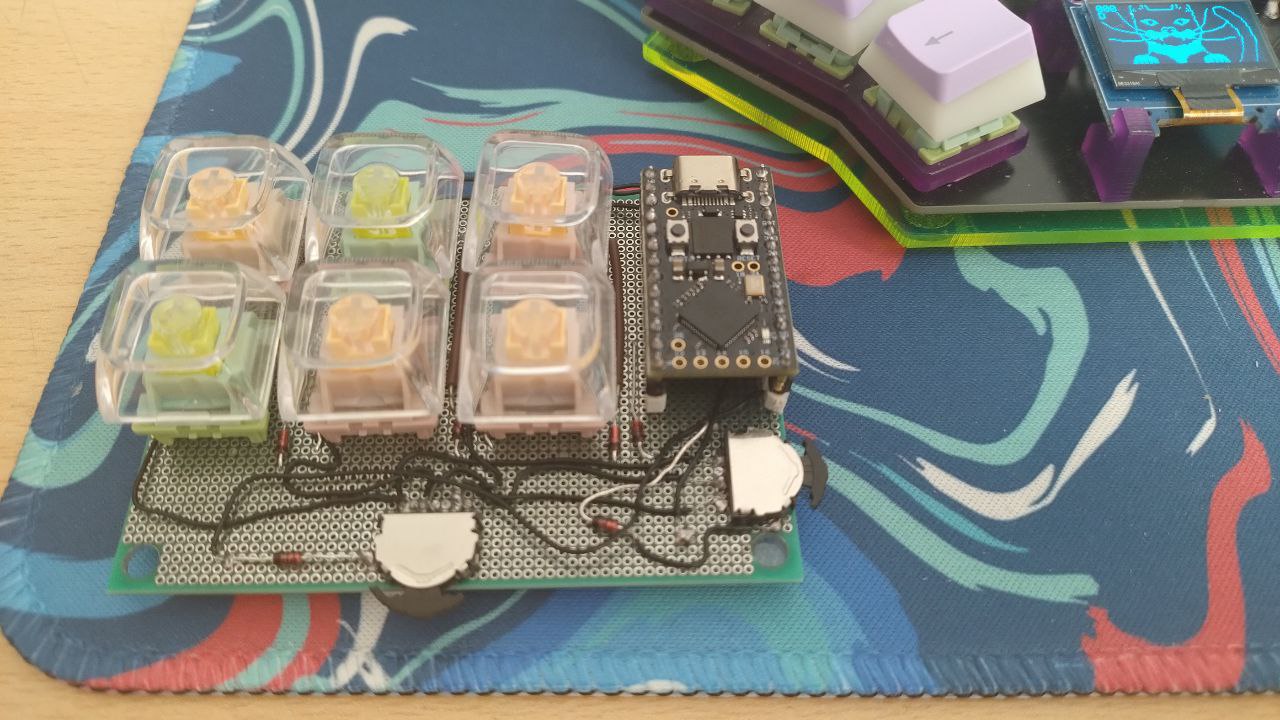

Today I have tested this on my prototyping bredboard
That’s not really a good decision on my opinion…

photo_2024-06-25_18-07-47
photo_2024-06-25_18-07-471280×720 176 KB

But anyway I got some experience
Very intresting that it goes in matrix of buttons in not so standart way
This navigation button is three buttons in one body, with common ground pin.
So because of this, and actually because of my matrix is “column to row”, i’m able to use only one diode instead of three. But it works when other pins connected to columns. And I think also because you’re not able to push all three in one time.
Maybe i will give a chance to this idea if i will solder this button vertically, so it will be little bit more comfortable…
I hope testing stupid ideas is not a crime in this community :smiley:

2 Likes
11

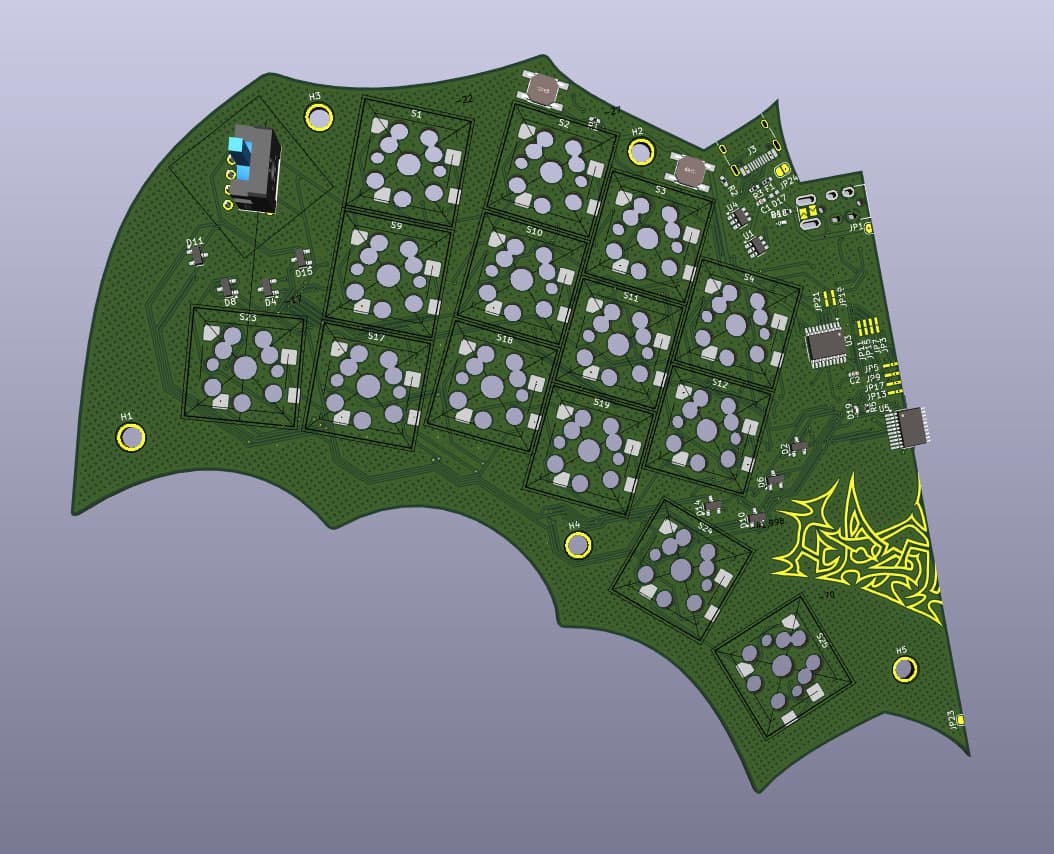

After I tested this I got another idea
maybe this?

12

Imho that’s kind of the best you can do :slight_smile: you could say that at least half of the 40s are based around that :eyes:
