1

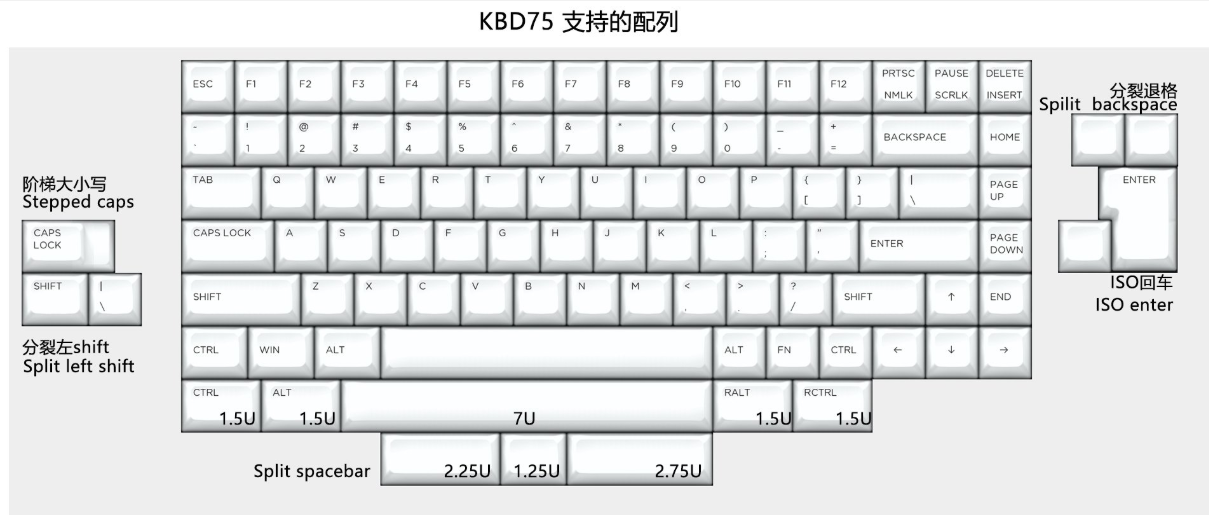

I’m going to be building my first board to which I have chosen a 75% layout. I ordered 2U stabs (4) & a 7U stab (1) as I don’t need the bottom right [FN] key & rather preserve the 7U space bar. I’m looking at the layout on KBD fans for the KBD75v1 and it denotes that the larger keys (requiring stabilizers) must be 1.5U.

Capture1
Capture1.PNG1209×515 255 KB

Am I understanding this correctly? OR is it that the 2U stabs will still be needed for enter, backspace, and shift keys?

Sorry if I sound naive, but it’s because I am! Ha.

2

Yes, you need 2u stabilizers for Backspace, Enter, and Left Shift. All keys greater or equal to 2u need stabilizers in this case.

1 Like
3

You answered my question perfectly. Thank you
