Playing around with Outemu Snap Switches

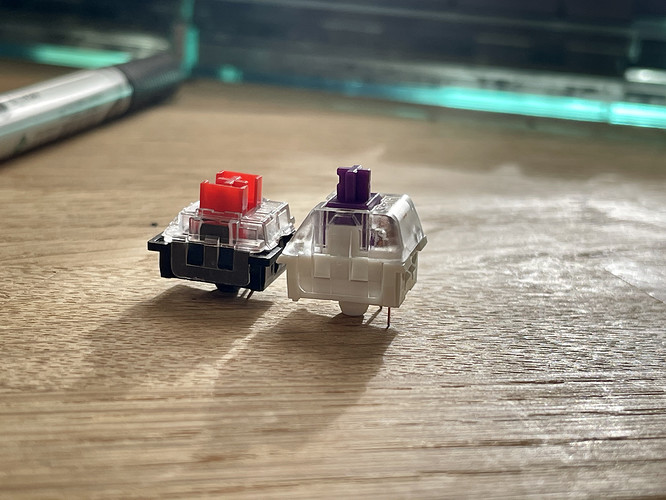

So I’ve been playing around with a batch of Outemu Snap switches. They are 2mm lower than regular switches giving you a mid-height profile.

These are named for the (supposedly) different click mechanism of their Snap Blue switch, but these Red switches work just like a regular MX linear switch.

My discoveries so far:

  • Like many Outemo switches they have a nice, tight housing and very little wobble (the shorter stem probably helps here too).
  • Sadly they literally use a shorter MX spring so you can not really spring swap them. Kailh Box and Alps springs are too narrow.
  • I definitely like the lower profile, however small a difference it may be. Remember with some boards having around 20mm front height a 2mm reduction is still 10%

Have not tested the affect of lube yet. They are no more or less scratchy than a regular Cherry MX Red.

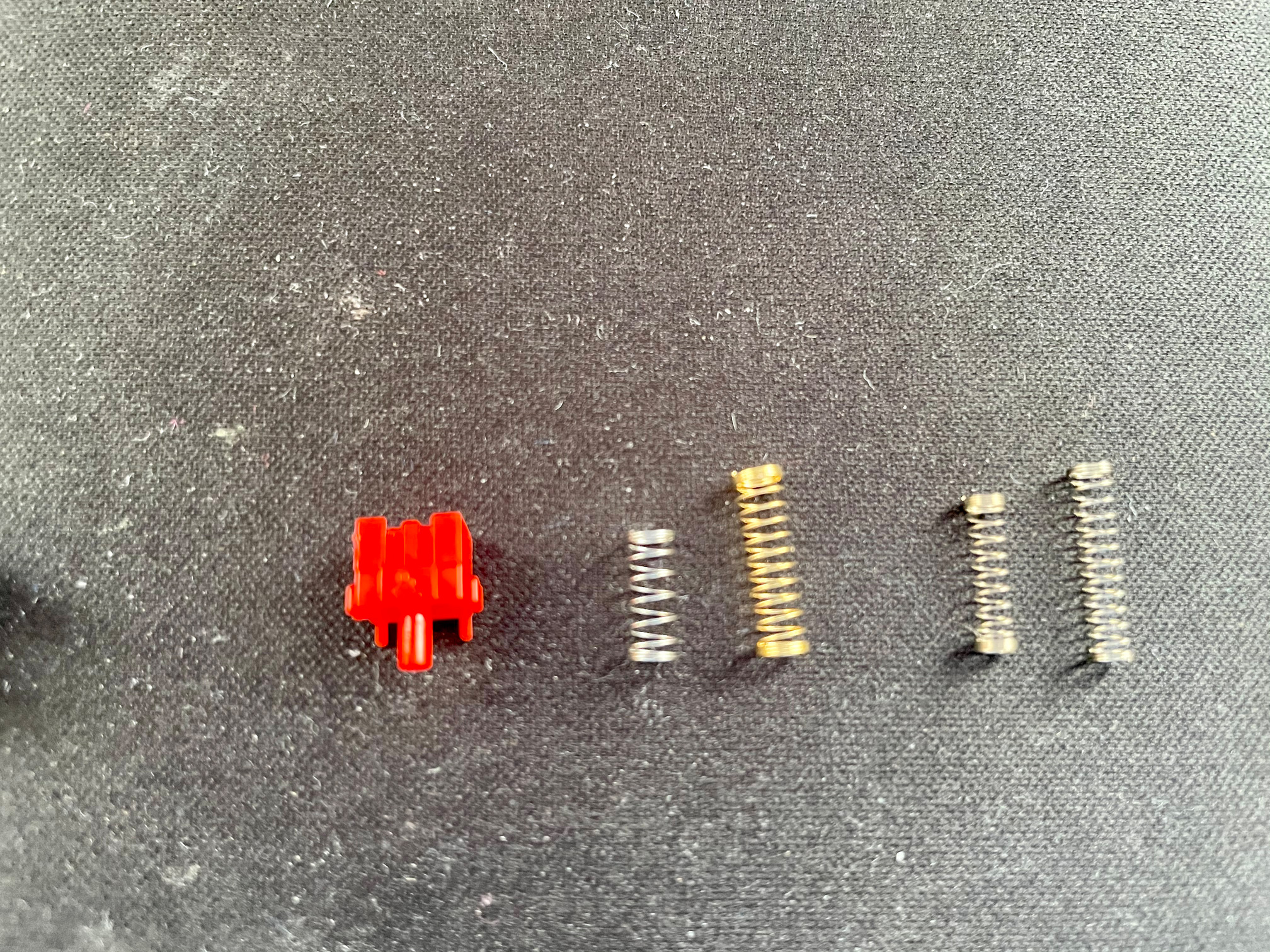

Pictures of the switches and springs below.

7 Likes

Interesting!

Any reason you couldn’t just put a long spring in there - or would it bunch up too much?

1 Like

It was one of my first experiments. With the spirit spring that I tried it reduced travel by at least another millimeter. If you push hard enough you can still bottom out, but only after a horrible grinding crunch sound.

3 Likes

I did order some slow springs to try. They seem to have more space between the coils and might work letter.

1 Like

Ok so the Snap Blue switches really do use a totally “new” click mechanism. It’s neither a click jacket nor a click bar.

I put new in quotes because it has a mechanism a little reminiscent of Space Invaders clickies.

Basically a plastic diamond on the back side of the slider pushes apart two metal leafs that snap back together after the diamond passes through.

The sound is less sharp, but deeper than click bars.

5 Likes

Do these share the same footprint as MX switches?

2 Likes

There are 2 versions out there from Outemu - one has MX footprint, another has some other wacky one that is like a reversed choc footprint.

All of the stems appear to be the same design - so if you bought clicks you could remove that bar and they would be exactly the same as the linears.

FYI I have been working with Outemu over the last few months getting some minor tweaks done to these switches and am excited to bring the first big batch of them into my store in the very near future.

6 Likes

The version that I have is MX compatible. I am intrigued as to whether the click mechanism could be turned into an advanced tactile leaf somehow.

I am very curious to try the black variant, which is not readily available anywhere. The red snap linears are okay, but not satisfying for me. A heavier or intermediate spring might help.

About time a vendor snapped these up! Looking forward to getting some.

Would these work with SA profile caps?

If the plastic was extended so that it stayed in contact with the wire throughout the while travel of the slider I think it would work for tactility without a click.

1 Like

I tested some random SA caps from Signature Plastics and they are fine.

So they don’t bottom out on the plate? Nice

Okay, now I’m interested. So from looking around these can be found in the Tecware Phantom L and the Redragon Shrapnel K589. Are there any places where you can buy the switches by themselves?

2 Likes

Looks like you can buy them here, but the minimum quantity is 10000 switches.
https://www.dggaote.com/keyboard-switch/snap-spring-mechanical-switch/thin-keyboard-mechanica-blue-switch.html

2 Likes

No one carries them for retail right now. They used to be on Aliexpress a year ago, but not anymore. I found a cheap, used Tecware Phantom L. Since it uses regular Outemu hotswap sockets it was not a terribly difficult harvest.

That is why I was so excited that MKUltra is going to carry them in the future.

1 Like

Thanks mate, but can you imagine 10,000 switches arriving on your doorstep lol

Cool, I guess I’ll have to go hunting for these. This keyboard isn’t available in the UK so I’ll have to get them from the US. How fun :stuck_out_tongue:

3 Likes

I’ll be carrying red, brown, blue and black versions to start.

If you want to keep the nice smooth tactility without the click, you can glue or pin that click leaf into place. I’ve looked into getting little c-clips made for exactly this purpose. Should make for a pretty cool switch that way so you can pick how you want it to perform - linear, tactile, clicky all in one.

3 Likes

zeal’s 3 in 1 switch released early KEKW

3 Likes

Beat me to the punch!
