Funky Frankenswitches

Ahoy, all. In light of the exploding variety of switches and components this past year or so, I thought it might be fun to have a thread dedicated to frankenswitches, whether they be failures, fantastic, or just for fun. I’ll get things started with one of the just for fun variety:

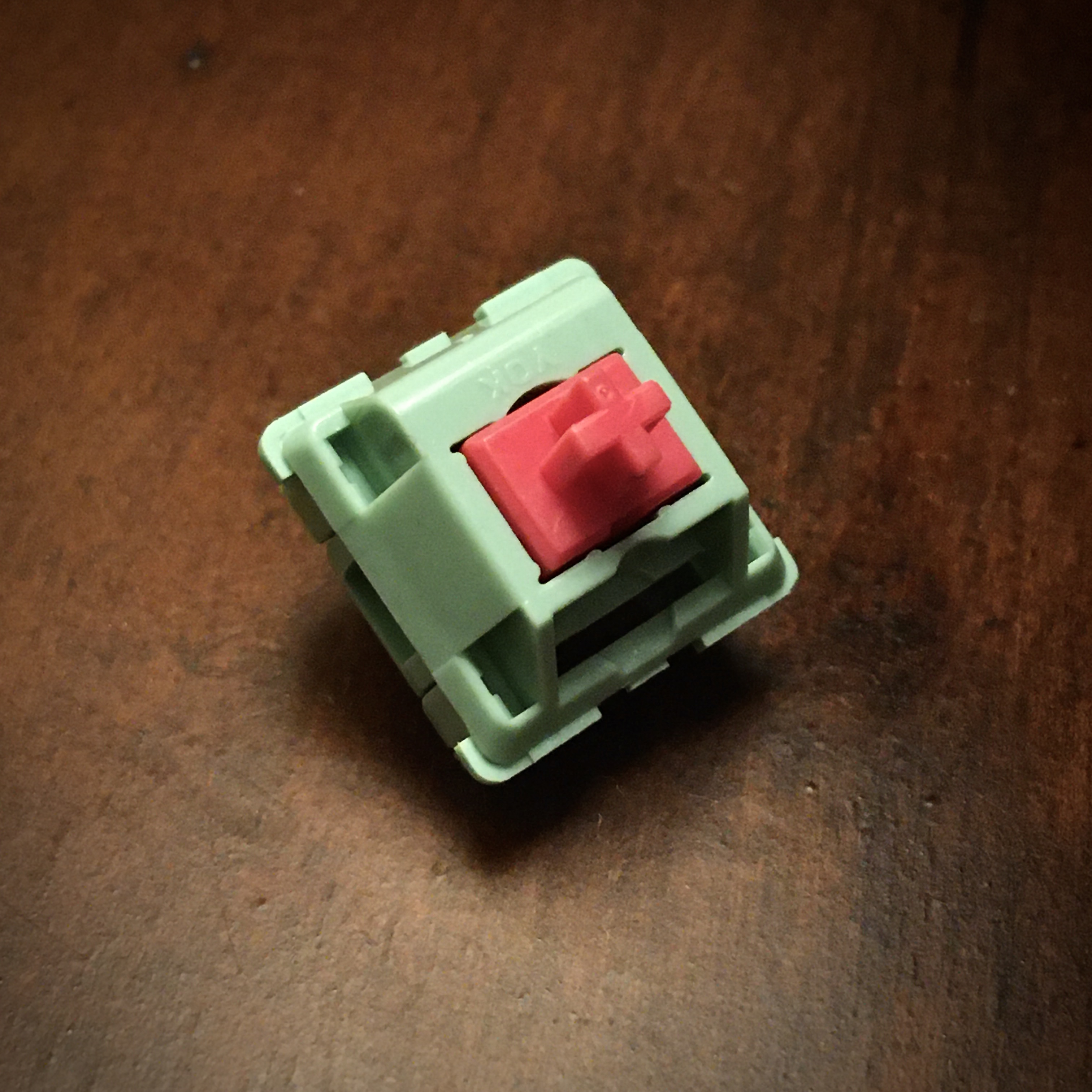

Strawberry Mint

  • YOK Mint Panda housing and spring
  • KBDfans Aliaz stem
  • Reasonably quiet
  • Moderately tactile
  • Looks neat
  • Doesn’t really excel at anything though

More tactile than an Aliaz - which isn’t saying much - and also louder. More wobble and less refinement than I like in a switch - but those colors…

4 Likes

Cherry browns feel okay in those housings too. And then you get mint chocolate chip. Can go GMK mint chocolate to match, too

3 Likes

I’ve been waiting for a thread like this for a long time.

I don’t have any pics of this switch but it is quite nice from what I have been able to get out of it.

Parts:
Kailh brown stem
Zeal v2 bottoms (I actually used the original zilent v2)
Outemu no-wobble led top
Spring of your choice

It is a “better” brown and is really just a mid bump switch with some actual tactility to it. Just feels good to have something like this since there are so many switches now that are all high up bumps that are highly tactile, yet nothing in the middle areas. This has solved it more or less for me.

3 Likes

Hey! Do you mind if I post this on r/switchmodders?

Can I post this on r/switchmodders? Thanks!

Why not just link here in the subreddit

I certainly don’t mind - the more connections between knowledge-bases, the better as far as I’m concerned. :+1:

2 Likes

Here’s two recipes that I’ve tried on loose switches but would like to test on a whole board:

  1. Outemu silent tactile stems in Cherry MX Blue housings. These are insanely tactile but they still manage to return even with a 62g spring. I have a sample that has been lubed with 3204 on the legs and it’s quite smooth. I may consider these for a fidget toy.
  2. Kailh Speed Copper/Speed Burnt Orange stems in T1 housings. These have a very sharp tactile bump up top (similar to stock Speed Copper) but it’s much more pronounced, and the switch has a nice smooth linear finish, as well as the characteristic clack of Kailh stems.
1 Like

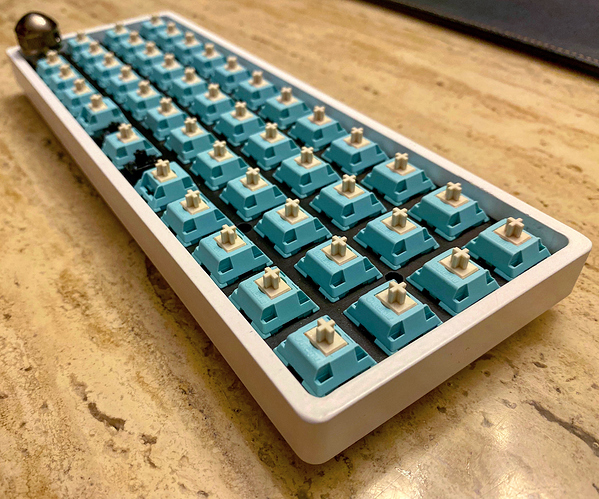

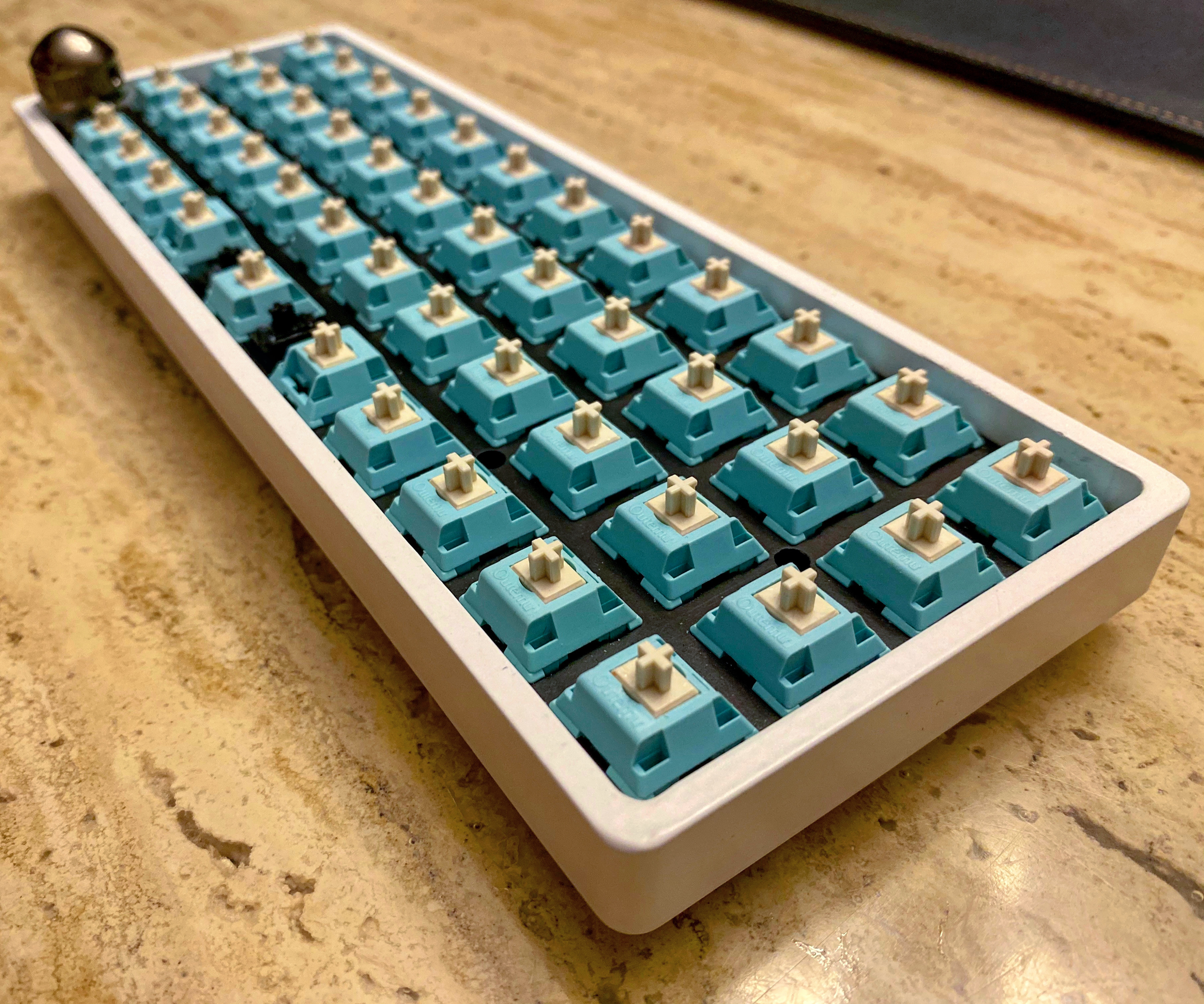

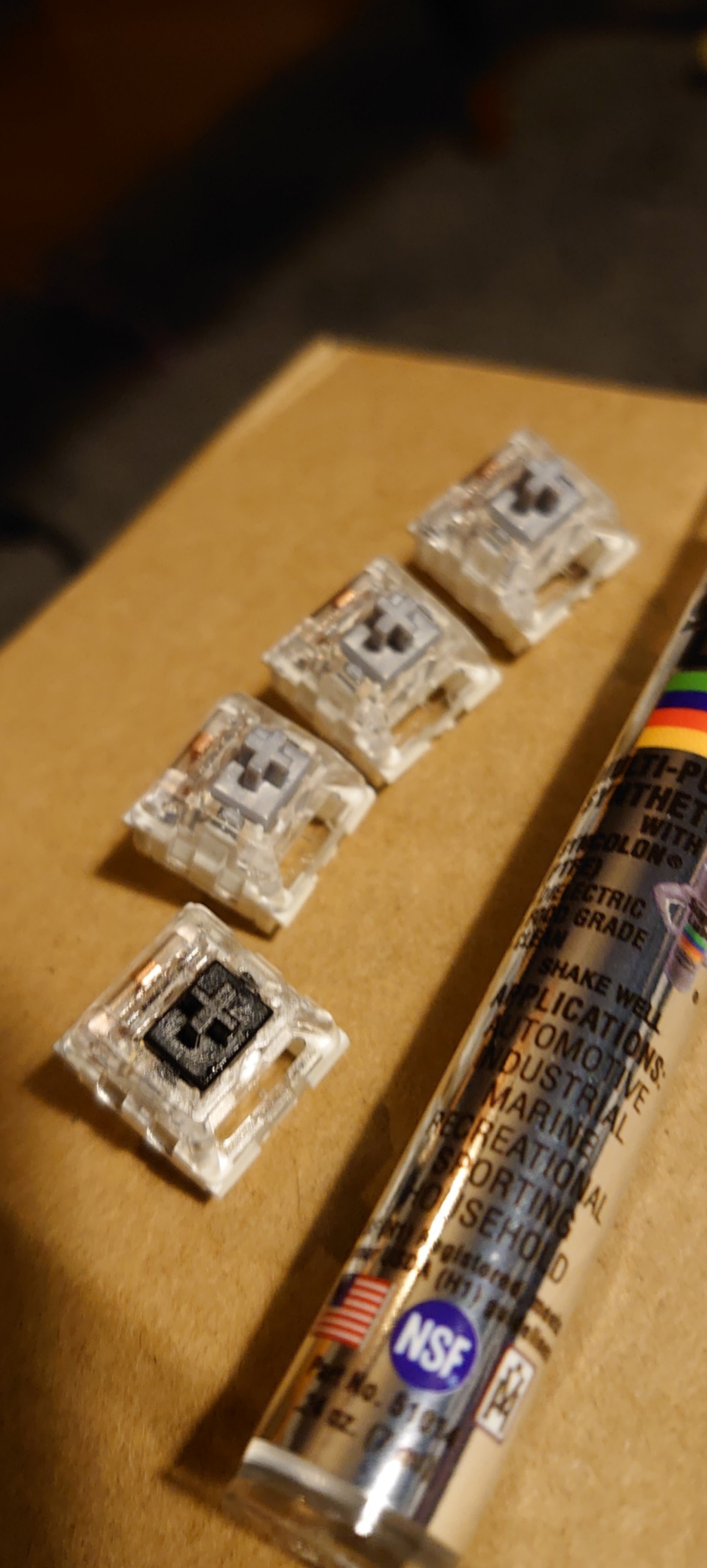

I put together a switch that has turned out to be one of my favorites, I dubbed “Skream”:

  • Outemu Sky v2.2 housing
  • Novelkeys Cream stem
  • Sprit 45g spring
  • Sliders and stem lubed with Krytox 205g0
  • Spring bag-lubed with HOPPE’S No. 9 Lubricating Oil

They look and sound awesome! Watch the linked vid for sound test: (I’ll hopefully have one up this next weekend of these switches in my custom Preonic with aluminum case and copper plate)

Typing Test

3 Likes

Using firearm oil on switch springs? Alright, i’ve got to try this one.

2 Likes

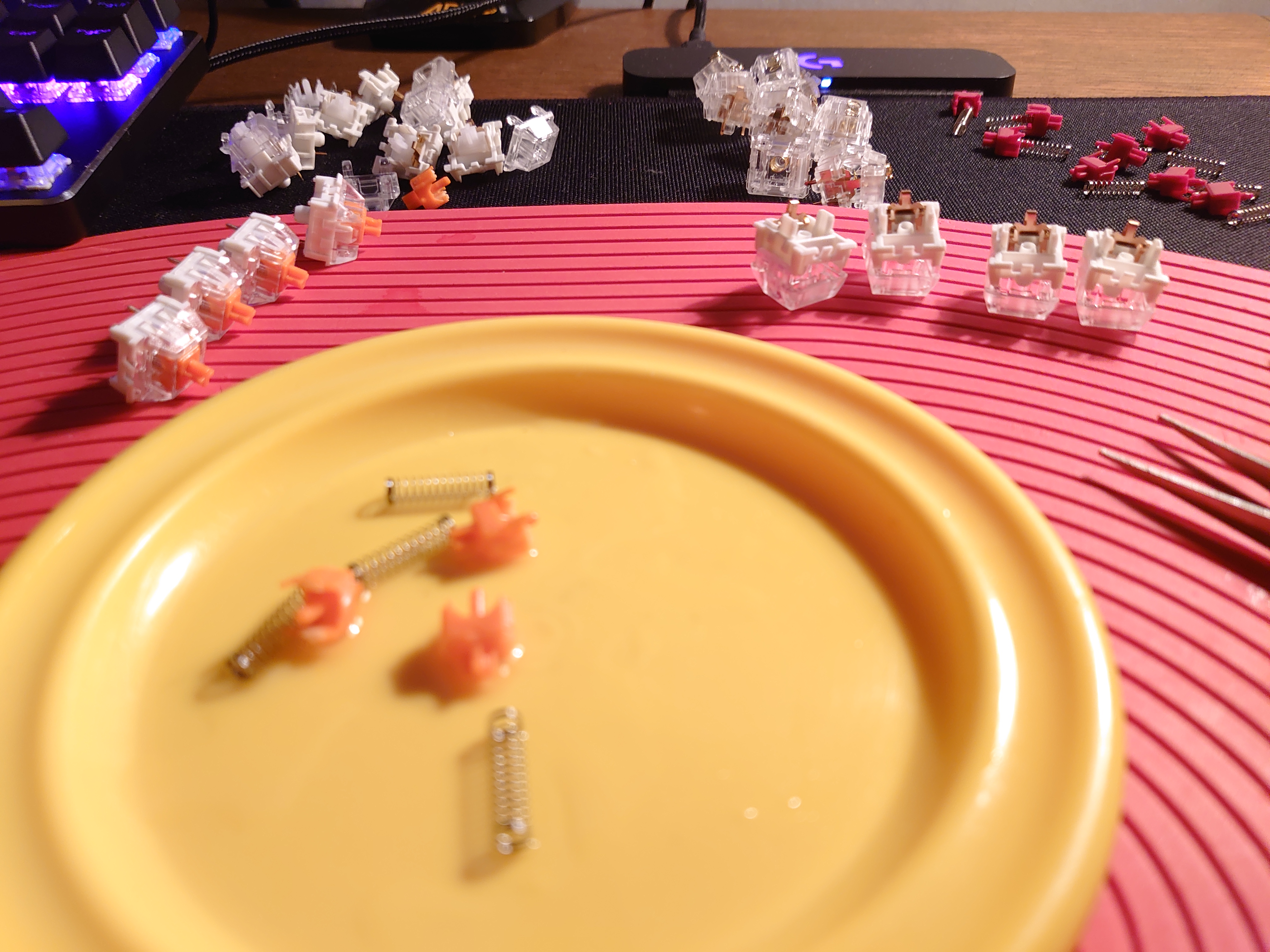

This was my first attempt at even trying to something with a switch.

But I made a Speedios. =)
The stem from Helios
Housing from Kailh Speed Pro Burgandy
Spring from Gateron Clear

Works for game but as soon as I need to type that gateron clear spring makes a mess of it all. =P
So I will re do them with another spring.

2 Likes

Oh Frankenswitches

I haven’t had that much time recently to muck about with my random switch parts that I keep for no particular reason.

Hopefully I’ll get around to it soon, but within the space of linears I don’t think there is as much variation as tactiles :thinking:

We’ll have to see

2 Likes

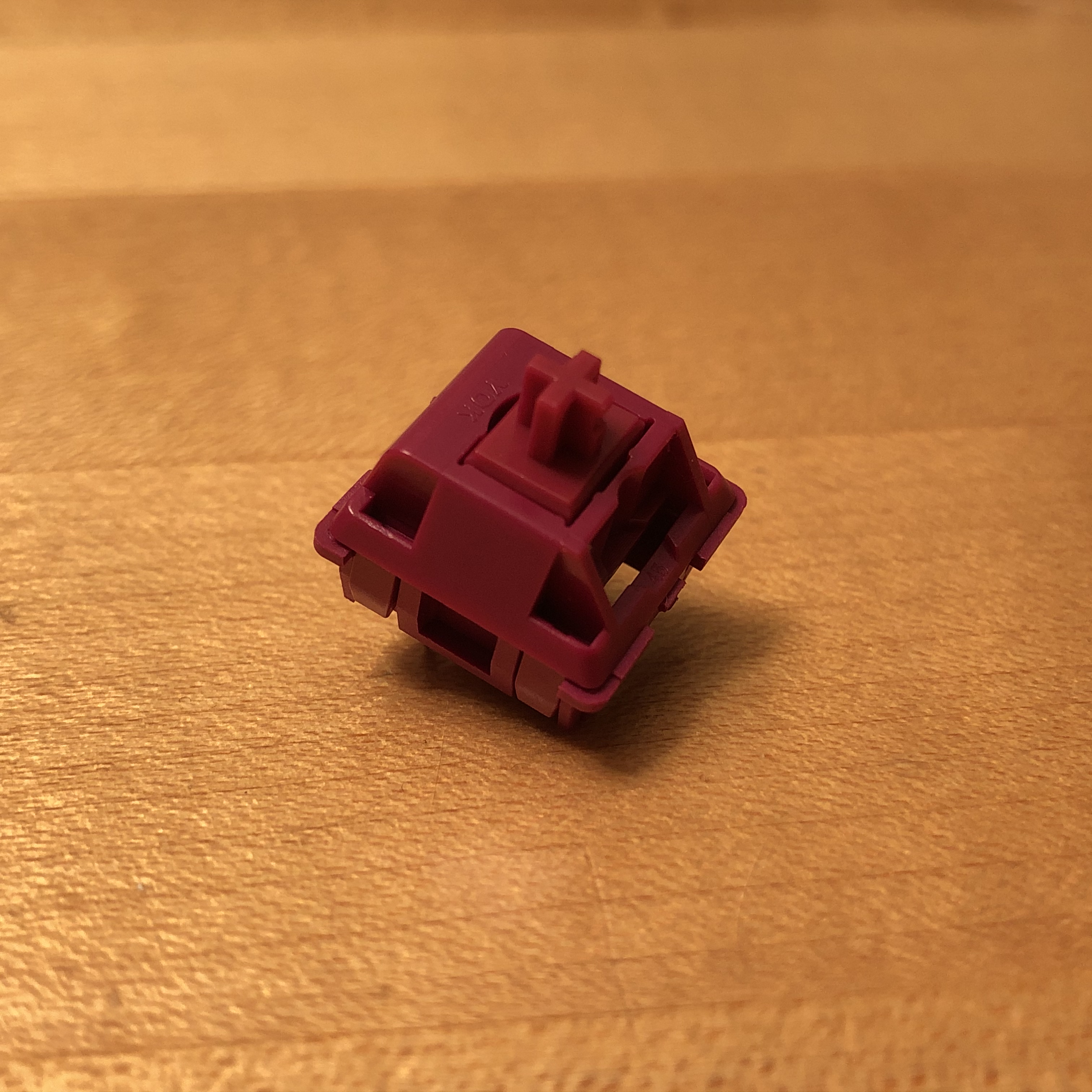

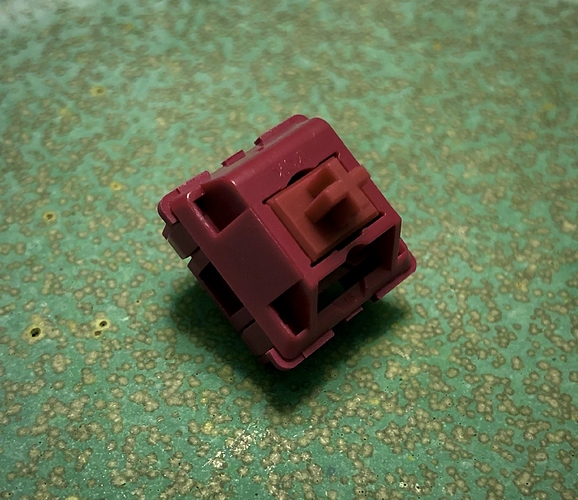

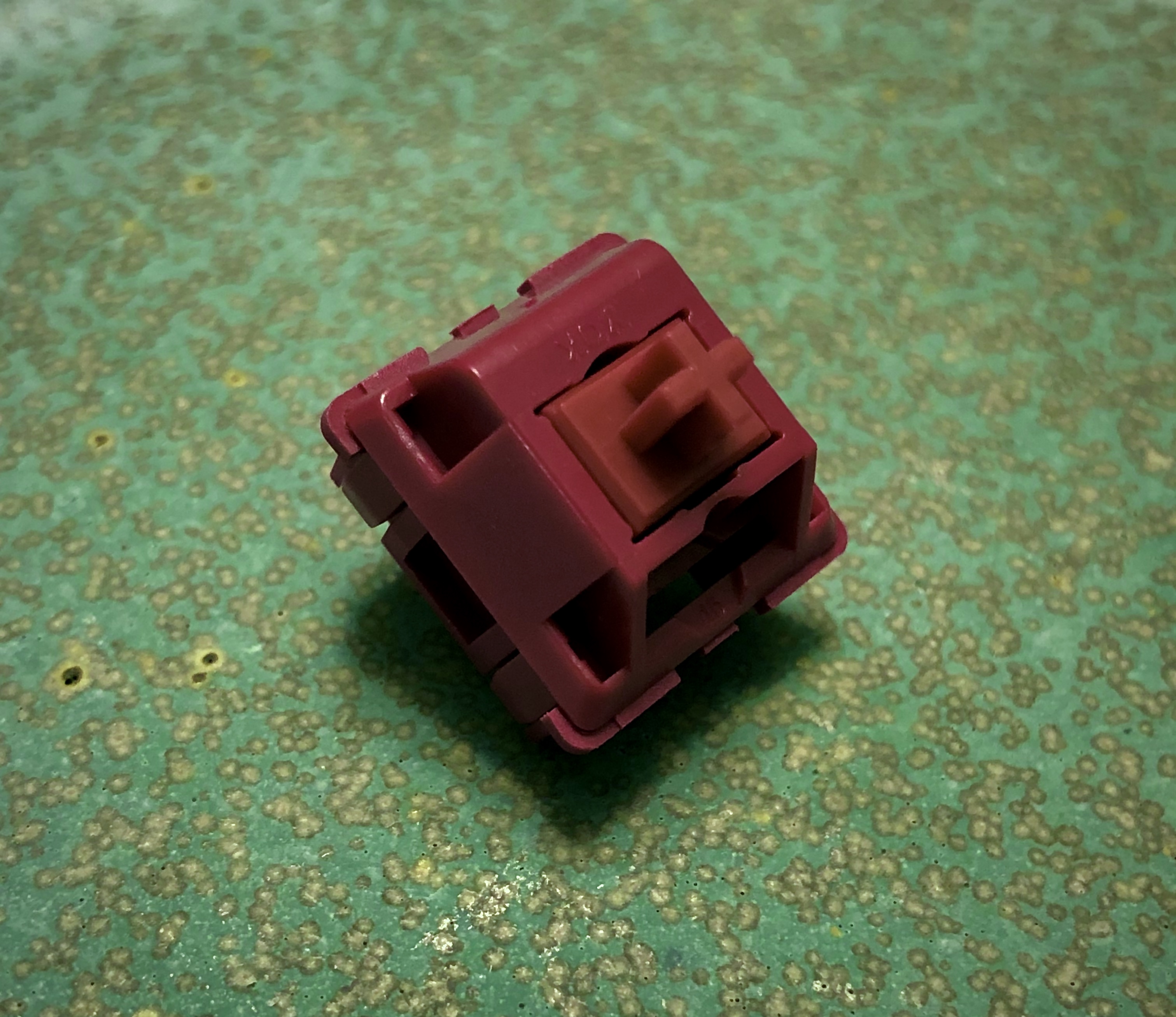

Cream Sherry

  • YOK Red Panda housing and spring
  • Kailh Pro Burgundy stem
  • Distinctive sound
  • Reasonably smooth
  • Red like wine

The Burgundy’s long-posted stem gives this a similar bottom-out sound to a Holy Panda, minus the tactile element beforehand. Not the same as a Cream, but still has a fairly “creamy” sound and feel. Less harsh housing vibrations or a slightly softer plastic than my imaginary baseline, maybe?

I put this together specifically to have a linear with that great “tak! tak!” Holy Panda bottom out sound - but once again, I’m all about that color. More serviceable than my last colorful frankenswitch, I might actually use these after a bit of lubing.

8 Likes

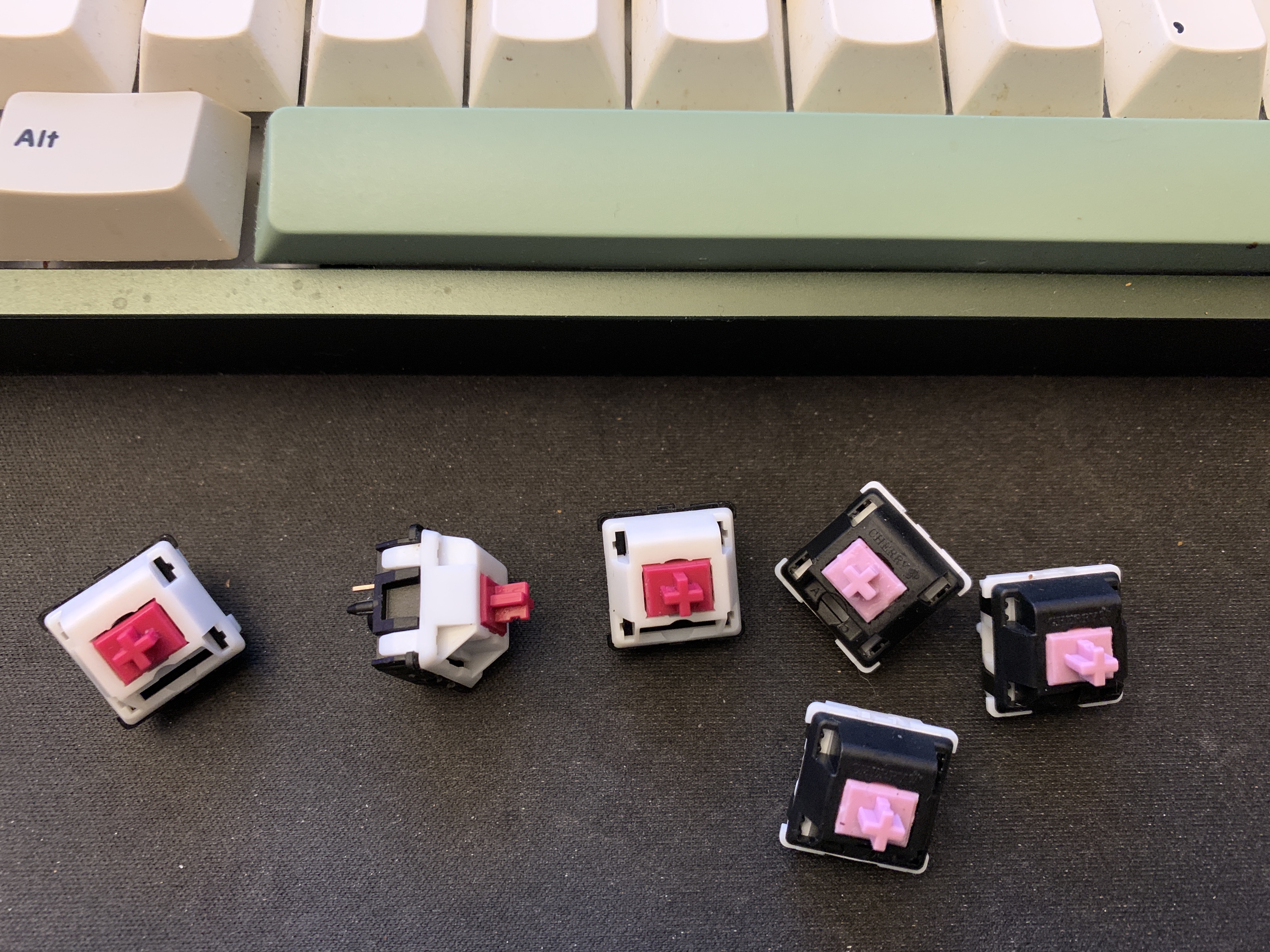

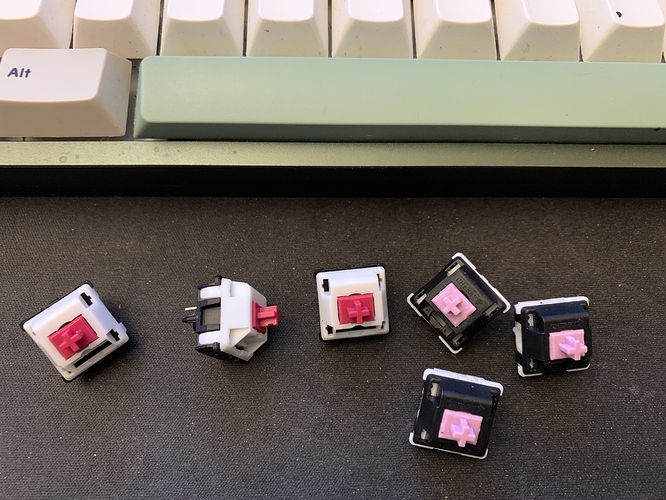

Right: Black Mauve - Mauve with Cherry MX Black top housing. Sounds more solid (warning: subjective) than regular Mauves. Still not as good as Cherry MX Black but closer.

Left: Red Tap Dancer - Cherry MX Black bottom housing + Mauve top housing + Kailh Pro Burgundy stem. Extended stem tip striking Cherry MX Black bottom housing makes sound that reminds you of tap dancing. Two issues: shorter key travel, somewhat scratchy.

UPDATE: Mauves sound pretty nice but there is a slight hint of cheap plastic soap case sound to it. Cherry MX Black top housing reduces some of that.

2 Likes

Have you ever wanted to flex an entire board of Hirose Orange switches, but can’t because you’re poor as all hell? Well oh boy do I have the frankenswitch for you! And it only needs two switches to make! WOW!

Stealirose Orange Switch

Top Housing: Cherry (for the logo)
Stem: Tangerine Rev2 (Gateron-made)
Spring: Cherry Black (or similar)
Bottom Housing: Black Gateron (or really any black bottom housing)

Name inspiration is taken from “Stealios.” The two switches that I had in mind are the Tangerine and a Cherry Black. You could do this with vint blacks, too, but the point is it’s cheaper. I don’t have a pic or a sound test yet but if someone has some extra Tangerines on the cheap then hmu.

2 Likes

Maybe just me, but if you put ‘ios’ in the name it should be a zeal switch part in there. But then again, there are no rules in frankenswitches. =)

But will try if I ever get some tangerines.
Is there something fun to do with the tangerine housings?

It’s “irose” to denote the Hirose switch it’s imitating. The housings afaik are just Gat milky top housings.

Oh, the shame…

Gat Yellow + UHMWPE stem = Gat PEllow “Pillow”
Clean feeling switch. Not too expensive and easy to upgrade into. Doesn’t need lube to feel great.

1 Like

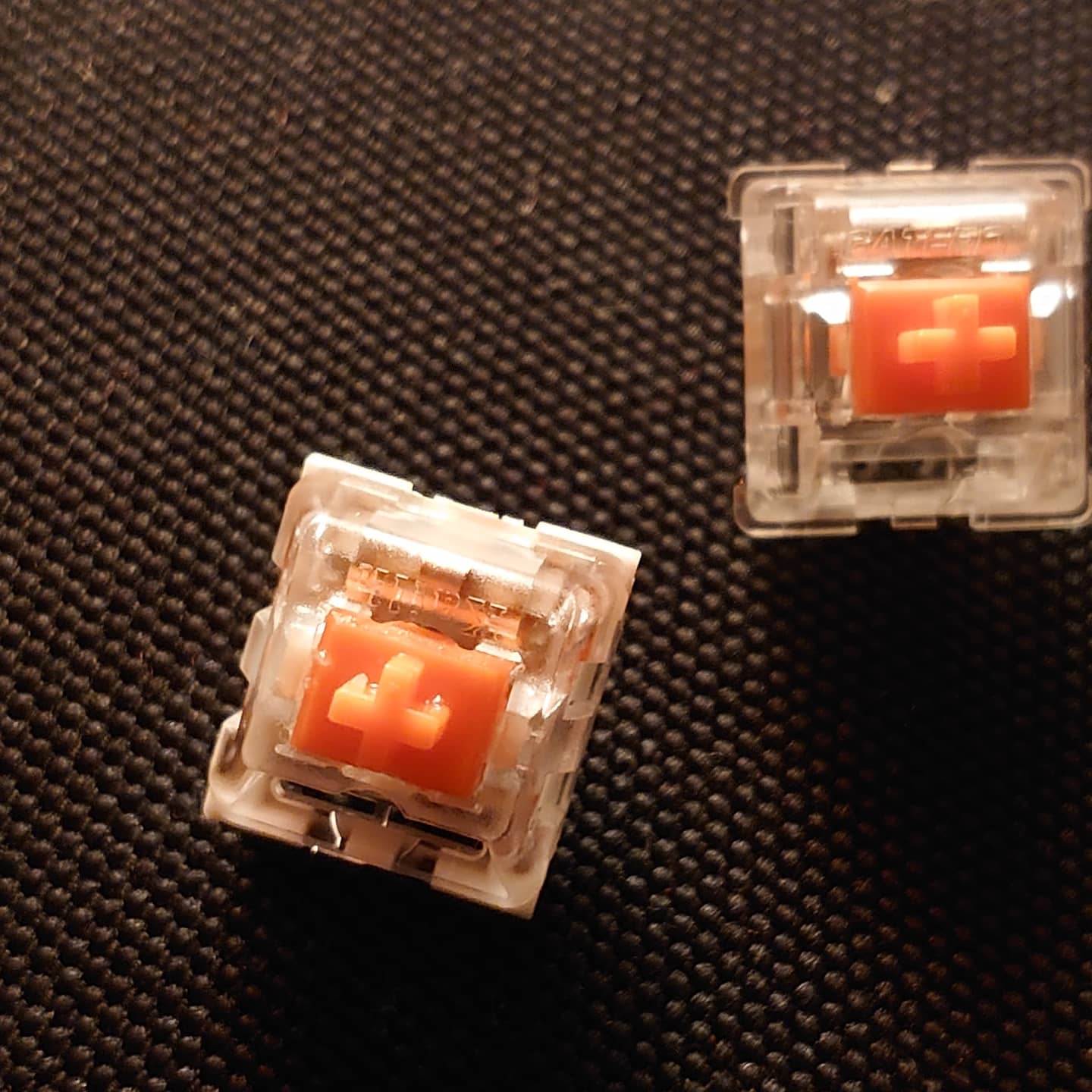

Not so funky but in the waiting for more parts I put some MX Black springs in the Kailh speed silver one of them got a Black stem to.
